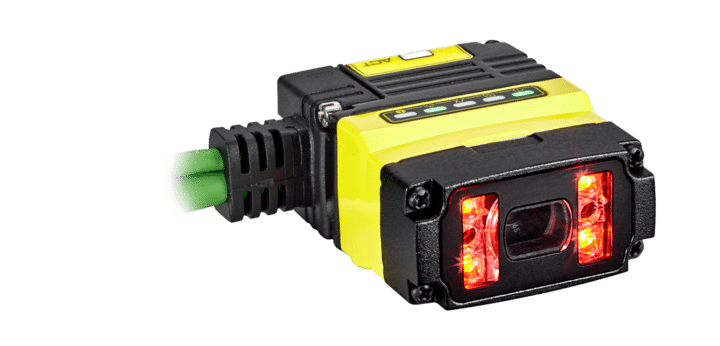

Maximize throughput and efficiency with the DataMan 80 Series — powerful, ultra-compact barcode readers designed for today’s fast-paced manufacturing and logistics environments. These image-based readers use advanced decoding algorithms to accurately track items, even in challenging conditions.
With flexible Power over Ethernet (PoE) and USB connectivity, the DataMan 80 Series easily reads direct part marks (DPMs) and even damaged or obscured 1D/2D codes. Built for a wide range of industries and applications, they deliver reliable performance where size, speed, and precision matter most.
Get up and running in minutes with a streamlined, single-cable setup. Whether you’re scanning products, components, or packages, the ultra-compact design fits easily into tight machinery and crowded conveyor lines. With versatile connection options, these readers are built for fast, hassle-free deployment—even in the most space-constrained and demanding environments.
Start scanning in minutes—no complex setup or configuration required. The DataMan 80 Series comes preconfigured and ready to handle a wide range of barcode reading applications straight out of the box. With built-in AI tuning, it automatically optimizes performance for even the most challenging codes.

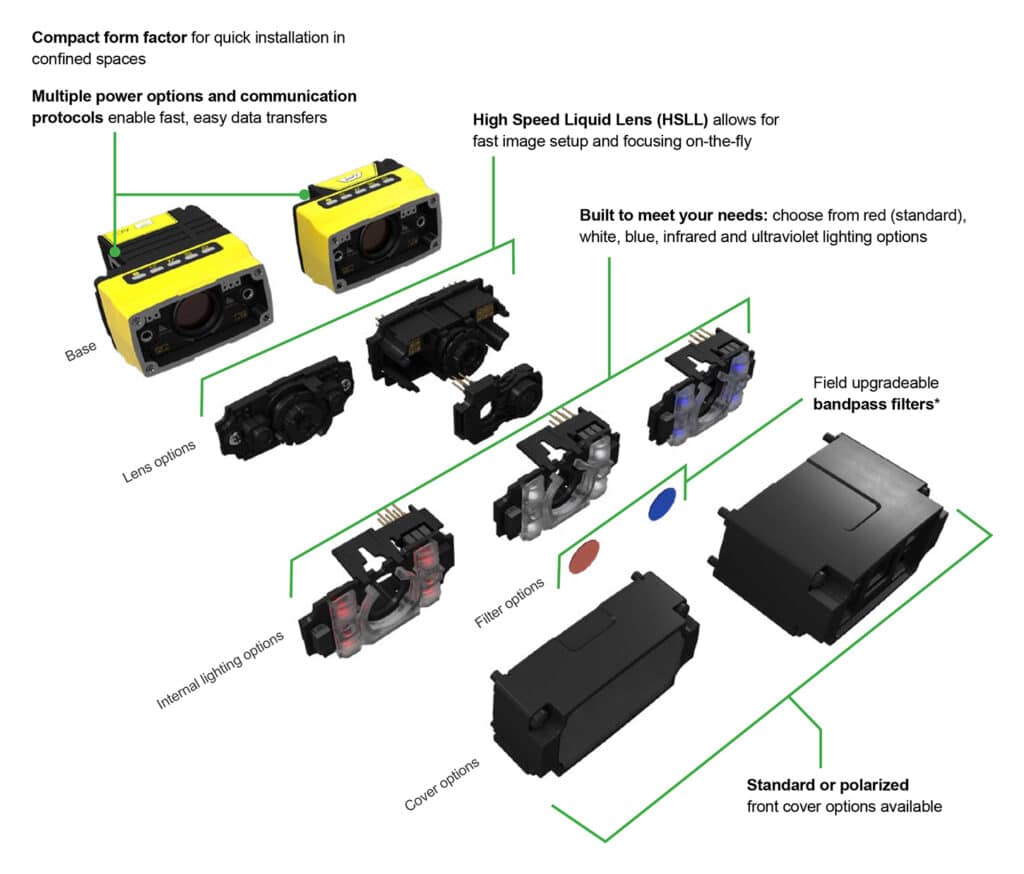

From standard decoding tasks to applications needing specialized lighting or optics, the 80 Series offers flexible kitting options to suit your specific operational needs.
Unlock real-time insight and control with Cognex Edge Intelligence (EI) paired with DataMan 80 Series readers. EI transforms big data into actionable smart data, helping you boost equipment effectiveness, throughput, and operational visibility.
Easily configure and manage multiple devices across your facility while monitoring system performance instantly. When issues arise, EI alerts operators and provides advanced analytics and image-based tools to quickly identify and resolve root causes—keeping your operations running smoothly and efficiently.
| DataMan 80 USB | DataMan 80 PoE | |
|---|---|---|
| Algorithms and Technologies | 1DMax, 2DMax, Hotbars, PowerGrid | |
| Image Sensor | 1/3″ CMOS | |
| Image Sensor Properties | Diagonal 6.21 mm, 3.45 μm square pixels | |
| Image Resolution | 1440 x 1080 pixels | |
| Weight | 6.2 mm assembly: 99 g 16 mm assembly: 132 g | 6.2 mm assembly: 64 g 16 mm assembly: 97 g |
| Power | USB powered: USB BC 1.2 port, USB 3.0 port with 4.5 W or higher, USB-C with USB-PD (5 V/3 A) External power supply: +5 – +24 V DC. Supplied by limited-energy circuit according to IEC/ UL/ CSA 61010-1 * | PoE Class 2 |
| Power Consumption | Average: 3.3 W Maximum: 4.2 W | Average: 4.3 W Maximum: 6 W |
| Operating Temperature | 0-40° C (32–104° F) | |
| Storage Temperature | -10–60° C (14–140° F) | |
| Humidity | <95% non-condensing | |
| Environmental | DataMan 80: IP67 ** DataMan 80 with Sound Amplifier: IP44 Altitude: 2000 m, indoor use only, pollution degree II | |
| Shock | IEC 60068-2-27 – 500 shocks in each polarity of each (X, Y, and Z) axis, 3000 shocks total, semi-sinusoidal,11 g, 10 ms | |
| Shock (Shipping and Storage) | ISTA-1A Standardized Testing – Packaged Products 150 lb or less | |
| Vibration | IEC 60068-2-6: vibration test in each of the three main axis for 2 hours @ 10Gs (10 to 500 Hz at 100m/s2/15 mm) | |
| Vibration (Shipping and Storage) | FedEx Vibration Testing for packaged products 150 lbs or less | |
| Codes | 1D barcodes: Codabar, Code 39, Code 128, Code 93, Code 25, Interleaved 2 of 5, Postal Codes, UPC/EAN/JAN, MSI 2D barcodes: Data Matrix (IDMax and IDQuick: ECC 0, 50, 80, 100, 140, and 200), QR Code, microQR, PDF 417, AztecCode, DotCode, MaxiCode | |
| High-Speed Output 0 | IMAX: 50 mA ; VOL: ≤ ±3 V @ 50 mA * | IMAX: 50 mA ; VOL: ≤ ±3 V @ 50 mA *** |
| Input 0 | VIL: ≤ ±6 V; VIH: ≤ ±12 V; ITYP: 4.2 mA @ 24 V * | VIL: :5 ± 6 V; VIH: ±12V; ITYP: 4.2 mA @ 24 V *** |
| Lighting | Standard: 4 LED lights for 6.2mm lens (red) HPIL: 4 LED high-powered lights for 16 mm lens (red) Front cover options: polarized, half-polarized and clear | |
| Ethernet | N/A | 10/100/1000, Full duplex or half duplex |
| RS-232 | RxD, TxD according to TIA/EIA-232-F * | N/A |
| Standards Compliance | IEC 61340-5-1:2016 | |
