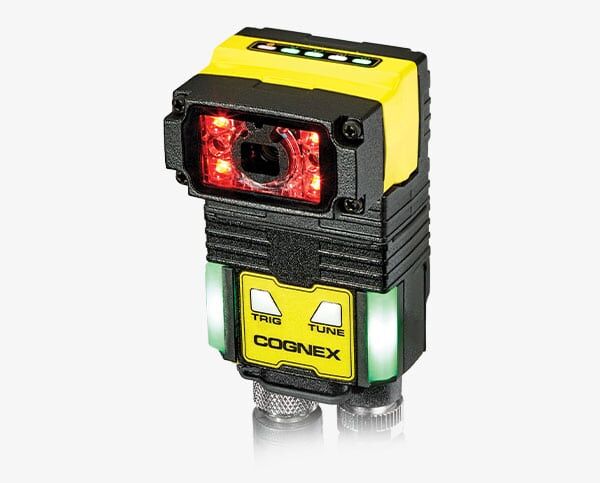

IN-SIGHT SNAPP VISION SENSOR

One device, endless possibilities

Categories ,

Redefining Sensory Technology

The In-Sight SnAPP vision sensor transforms the realm of machine vision, making it accessible to all. Equipped with easy-to-follow setup instructions and pre-configured AI, the In-Sight SnAPP empowers manufacturers to implement inspection automations swiftly and effortlessly, regardless of their prior experience. By harnessing cutting-edge vision technology, these intuitive sensors are adept at performing a broad spectrum of error-proofing tasks, thereby enhancing quality assurance measures.

  • Adaptable Uses – Serves a broad array of applications across diverse industries.
  • Enhanced Detection Abilities – Delivers superior detection outcomes through the integration of AI and sophisticated image analysis.
  • Unparalleled User Friendliness – Achieve operational automation straight out of the box in mere minutes.

Streamlining Operations Throughout Your Premises

In-Sight SnAPP Apps cater to various error-proofing needs, ranging from basic presence/absence checks to complex multi-point inspections. Although these sensors are designed to tackle one task at a time, they are versatile enough to handle different scenarios. Thanks to the straightforward interface, switching between tasks or configuring new automations to refine your production line is a breeze, ensuring your operations remain flexible, cost-efficient, and error-free.

  • Anomaly Detector – Identifies irregular defects and characteristics, such as blemishes, scuffs, and foreign objects.
  • 2-Class Classifier – Facilitates binary sorting and checks for known or uniform irregularities.

Future Enhancements Include:

  • Optical Character Recognition
  • Assembly Verification
  • 4-Class Classification
  • Item Counting
  • Identification

Elevating Detection Standards

Leveraging AI and image analytics, the In-Sight SnAPP vision sensors surpass traditional, laser-focused sensors by providing superior precision and performance for any detection task. With In-Sight SnAPP, the potential to do more with sensory technology is limitless:

  • Detect minute details and imperfections.
  • Adapt swiftly to product changes and variances.
  • Conduct comprehensive multi-point checks.
  • Recognize components and elements in any orientation along the production line.

This advancement not only minimizes erroneous detections but also cuts down on waste, thereby boosting overall quality and efficiency.

Simplifying Problem-Solving

The In-Sight SnAPP enables effortless automation of quality control procedures, thanks to its reliance on pre-configured AI, which allows for the easy and quick creation of applications without the need for prior expertise.

  • Guided Setup – Minimize downtime with a straightforward, easy-to-navigate setup process.
  • Browser-Based Interface – Operate In-Sight SnAPP remotely from any location.
  • Code-Free Training – Configure jobs using just a handful of sample images.
  • Effortless Modification – Easily alter or develop new applications via the interface, without the necessity for hardware changes.
  • Seamless Integration – Substitute several laser-based sensors with a singular vision sensor for simplified operation.

Real-Time Application Configuration with VisionView

VisionView is an on-site display panel enabling quick training, modification, and supervision of tasks directly on the production line, eliminating the need for a computer. This technology enhances operational efficiency, simplifies device management, and delivers instant feedback for prompt adjustments to the manufacturing process.

Additional Features

One-Click Image Enhancement

Capture detailed images effortlessly for more precise inspections.

Web HMI compatibility

Manage and review applications without a PC, utilizing an easy-to-use display panel for on-the-spot job updates and monitoring.

Real-time training feedback

Receive immediate feedback on application performance to quickly identify and rectify potential issues

Compact design

Integrate automation seamlessly into any part of your production line thanks to its small size.

Fixturing capabilities

Securely position your inspection area to reliably detect parts and features, regardless of their orientation on the conveyor, ensuring consistent detection results.

IP67 rated

Designed to withstand the rigors of challenging manufacturing settings with its robust build.

LED indicator

Instant visual indicators reflect the sensor’s operational status.

IN-SIGHT SNAPP SPECIFICATIONS
Weight6.2 mm: 141 g
16 mm: 169 g
Right angle configuration adds 50 g
Power24 V DC +/- 10% and Power over Ethernet (PoE)
Power Consumption≤7.5W
Operating Temperature0–40 °C (32–104 °F)
Storage Temperature-10–60 °C (14–140 °F)
Humidity<95% non-condensing
EnvironmentalIP67
Shock (Shipping and Storage)IEC 60068-2-27: 1000 shocks, semi- sinusoidal, 11 g, 10 ms
ISTA-1A standardized testing – packaged products 150 lb or less
Vibration (Shipping and Storage)IEC 60068-2-6: vibration test in each of the three main axis for 2 hours
@ 10 Gs (10 to 500 Hz at 100m/s2 / 15 mm)
FedEx vibration testing for packaged products 150 lbs or less
High-Speed Outputs 0, 1, 2, 3IMAX: 50 mA
VOL: ≤ ± 3 V @ 50 mA
Inputs 0 (Trigger), 1, 2, 3VIL: ≤ ± 6 V
VIH: ≥ ± 12 V
ITYP: 4.2 mA @ 24 V
Ethernet10/100/1000. Full duplex or half duplex.
Program Storage20 for each application
Image Sensor1/2.8-inch CMOS monochrome and color
Image Sensor PropertiesPixel size: 2.8 μm (H) x 2.8 μm (V)
Pixels1440 x 1080 (1.6 MP)
Lens TypeAutofocus: 6.2 mm, 16 mm (high speed liquid lens)

Take the complexity out of training

In-Sight SnAPP vision sensors are trained through a web-based user interface (UI), which eliminates the need to download and install software. Using the browser of your choice, you can access the training UI from anywhere and immediately begin building your application.

The user-friendly interface guides you step-by-step through setup, from image capture to final result. Jobs can be trained using just a few sample images and embedded AI takes care of the rest, learning to recognize anomalies and correctly predict the output.

Setting up your In-Sight SnAPP Sensor

Pre-setup: Find the device

Locate your device using the Cognex Device Discovery Utility.

Step 1: Open device and access the home screen

Manage settings and switch between available applications.

Step 2: Adjust image

Define the acquisition area.

Step 3: Set the region of interest

Move and size the bounding box to the area within the image you would like to inspect.*

Step 4: Train

Label images as OK or NG (approximately 3-5 for each class). Add new, unlabeled images and verify results based on the confidence indicator.

Step 5: Finalize

Select trigger mode settings. Choose from either self (sensor triggers itself based on the acquisition rate) or single (sensor is triggered externally).

Post-setup: Enter monitoring view

Switch to the monitoring screen and view the results live.

Expand your automation possibilities

In-Sight SnAPP automates a wide range of quality control tasks, so you can be ready for anything. View the examples below to see how you can use this powerful, yet easy-to-use solution, to solve problems across your production line.

Anomaly Detector

Automotive

Verify proper assembly

Food & Beverage

Inspect packaged items for debris

Electronics

Detect presence/absence of components during assembly

Electric Vehicles

Identify surface-level defects, such as scratches, dents and tears

2-Class Classifier

Automotive

Verify product completeness

Consumer Packaged Goods

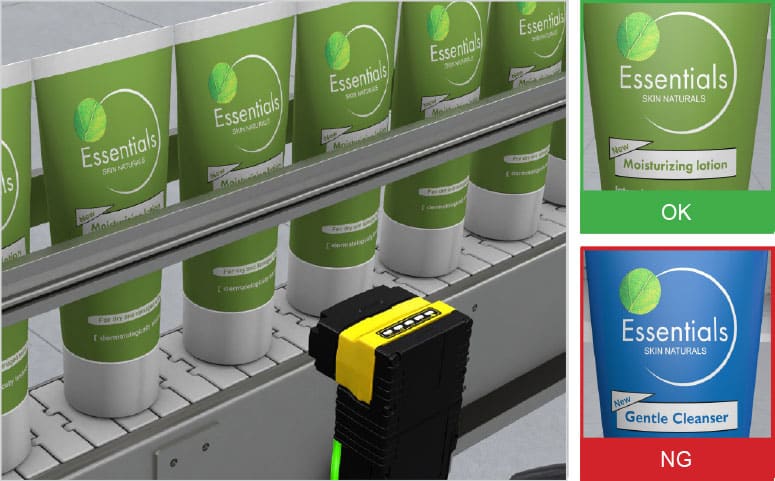

Inspect labels on final packaging

Electronics

Confirm presence/absence of components during product assembly

Logistics

Automate process control to ensure items come down the line in the right place at the right time

Description

One device, endless possibilities



Download Datasheet


Contact Us





Redefining Sensory Technology

The In-Sight SnAPP vision sensor transforms the realm of machine vision, making it accessible to all. Equipped with easy-to-follow setup instructions and pre-configured AI, the In-Sight SnAPP empowers manufacturers to implement inspection automations swiftly and effortlessly, regardless of their prior experience. By harnessing cutting-edge vision technology, these intuitive sensors are adept at performing a broad spectrum of error-proofing tasks, thereby enhancing quality assurance measures.

  • Adaptable Uses – Serves a broad array of applications across diverse industries.
  • Enhanced Detection Abilities – Delivers superior detection outcomes through the integration of AI and sophisticated image analysis.
  • Unparalleled User Friendliness – Achieve operational automation straight out of the box in mere minutes.

Streamlining Operations Throughout Your Premises

In-Sight SnAPP Apps cater to various error-proofing needs, ranging from basic presence/absence checks to complex multi-point inspections. Although these sensors are designed to tackle one task at a time, they are versatile enough to handle different scenarios. Thanks to the straightforward interface, switching between tasks or configuring new automations to refine your production line is a breeze, ensuring your operations remain flexible, cost-efficient, and error-free.

  • Anomaly Detector – Identifies irregular defects and characteristics, such as blemishes, scuffs, and foreign objects.
  • 2-Class Classifier – Facilitates binary sorting and checks for known or uniform irregularities.

Future Enhancements Include:

  • Optical Character Recognition
  • Assembly Verification
  • 4-Class Classification
  • Item Counting
  • Identification

Elevating Detection Standards

Leveraging AI and image analytics, the In-Sight SnAPP vision sensors surpass traditional, laser-focused sensors by providing superior precision and performance for any detection task. With In-Sight SnAPP, the potential to do more with sensory technology is limitless:

  • Detect minute details and imperfections.
  • Adapt swiftly to product changes and variances.
  • Conduct comprehensive multi-point checks.
  • Recognize components and elements in any orientation along the production line.

This advancement not only minimizes erroneous detections but also cuts down on waste, thereby boosting overall quality and efficiency.

Simplifying Problem-Solving

The In-Sight SnAPP enables effortless automation of quality control procedures, thanks to its reliance on pre-configured AI, which allows for the easy and quick creation of applications without the need for prior expertise.

  • Guided Setup – Minimize downtime with a straightforward, easy-to-navigate setup process.
  • Browser-Based Interface – Operate In-Sight SnAPP remotely from any location.
  • Code-Free Training – Configure jobs using just a handful of sample images.
  • Effortless Modification – Easily alter or develop new applications via the interface, without the necessity for hardware changes.
  • Seamless Integration – Substitute several laser-based sensors with a singular vision sensor for simplified operation.

Real-Time Application Configuration with VisionView

VisionView is an on-site display panel enabling quick training, modification, and supervision of tasks directly on the production line, eliminating the need for a computer. This technology enhances operational efficiency, simplifies device management, and delivers instant feedback for prompt adjustments to the manufacturing process.

Additional Features

One-Click Image Enhancement

Capture detailed images effortlessly for more precise inspections.

Web HMI compatibility

Manage and review applications without a PC, utilizing an easy-to-use display panel for on-the-spot job updates and monitoring.

Real-time training feedback

Receive immediate feedback on application performance to quickly identify and rectify potential issues

Compact design

Integrate automation seamlessly into any part of your production line thanks to its small size.

Fixturing capabilities

Securely position your inspection area to reliably detect parts and features, regardless of their orientation on the conveyor, ensuring consistent detection results.

IP67 rated

Designed to withstand the rigors of challenging manufacturing settings with its robust build.

LED indicator

Instant visual indicators reflect the sensor’s operational status.

IN-SIGHT SNAPP SPECIFICATIONS
Weight 6.2 mm: 141 g
16 mm: 169 g
Right angle configuration adds 50 g
Power 24 V DC +/- 10% and Power over Ethernet (PoE)
Power Consumption ≤7.5W
Operating Temperature 0–40 °C (32–104 °F)
Storage Temperature -10–60 °C (14–140 °F)
Humidity <95% non-condensing
Environmental IP67
Shock (Shipping and Storage) IEC 60068-2-27: 1000 shocks, semi- sinusoidal, 11 g, 10 ms
ISTA-1A standardized testing – packaged products 150 lb or less
Vibration (Shipping and Storage) IEC 60068-2-6: vibration test in each of the three main axis for 2 hours
@ 10 Gs (10 to 500 Hz at 100m/s2 / 15 mm)
FedEx vibration testing for packaged products 150 lbs or less
High-Speed Outputs 0, 1, 2, 3 IMAX: 50 mA
VOL: ≤ ± 3 V @ 50 mA
Inputs 0 (Trigger), 1, 2, 3 VIL: ≤ ± 6 V
VIH: ≥ ± 12 V
ITYP: 4.2 mA @ 24 V
Ethernet 10/100/1000. Full duplex or half duplex.
Program Storage 20 for each application
Image Sensor 1/2.8-inch CMOS monochrome and color
Image Sensor Properties Pixel size: 2.8 μm (H) x 2.8 μm (V)
Pixels 1440 x 1080 (1.6 MP)
Lens Type Autofocus: 6.2 mm, 16 mm (high speed liquid lens)

Take the complexity out of training

In-Sight SnAPP vision sensors are trained through a web-based user interface (UI), which eliminates the need to download and install software. Using the browser of your choice, you can access the training UI from anywhere and immediately begin building your application.

The user-friendly interface guides you step-by-step through setup, from image capture to final result. Jobs can be trained using just a few sample images and embedded AI takes care of the rest, learning to recognize anomalies and correctly predict the output.

 Download the Cognex Device Discovery Utility

Setting up your In-Sight SnAPP Sensor

Pre-setup: Find the device

Locate your device using the Cognex Device Discovery Utility.

Step 1: Open device and access the home screen

Manage settings and switch between available applications.

Step 2: Adjust image

Define the acquisition area.

Step 3: Set the region of interest

Move and size the bounding box to the area within the image you would like to inspect.*

Step 4: Train

Label images as OK or NG (approximately 3-5 for each class). Add new, unlabeled images and verify results based on the confidence indicator.

Step 5: Finalize

Select trigger mode settings. Choose from either self (sensor triggers itself based on the acquisition rate) or single (sensor is triggered externally).

Post-setup: Enter monitoring view

Switch to the monitoring screen and view the results live.

Expand your automation possibilities

In-Sight SnAPP automates a wide range of quality control tasks, so you can be ready for anything. View the examples below to see how you can use this powerful, yet easy-to-use solution, to solve problems across your production line.

Anomaly Detector

Automotive

Verify proper assembly

Food & Beverage

Inspect packaged items for debris

Electronics

Detect presence/absence of components during assembly

Electric Vehicles

Identify surface-level defects, such as scratches, dents and tears

2-Class Classifier

Automotive

Verify product completeness

Consumer Packaged Goods

Inspect labels on final packaging

Electronics

Confirm presence/absence of components during product assembly

Logistics

Automate process control to ensure items come down the line in the right place at the right time

Redefining Sensory Technology

The In-Sight SnAPP vision sensor transforms the realm of machine vision, making it accessible to all. Equipped with easy-to-follow setup instructions and pre-configured AI, the In-Sight SnAPP empowers manufacturers to implement inspection automations swiftly and effortlessly, regardless of their prior experience. By harnessing cutting-edge vision technology, these intuitive sensors are adept at performing a broad spectrum of error-proofing tasks, thereby enhancing quality assurance measures.

  • Adaptable Uses – Serves a broad array of applications across diverse industries.
  • Enhanced Detection Abilities – Delivers superior detection outcomes through the integration of AI and sophisticated image analysis.
  • Unparalleled User Friendliness – Achieve operational automation straight out of the box in mere minutes.

Streamlining Operations Throughout Your Premises

In-Sight SnAPP Apps cater to various error-proofing needs, ranging from basic presence/absence checks to complex multi-point inspections. Although these sensors are designed to tackle one task at a time, they are versatile enough to handle different scenarios. Thanks to the straightforward interface, switching between tasks or configuring new automations to refine your production line is a breeze, ensuring your operations remain flexible, cost-efficient, and error-free.

  • Anomaly Detector – Identifies irregular defects and characteristics, such as blemishes, scuffs, and foreign objects.
  • 2-Class Classifier – Facilitates binary sorting and checks for known or uniform irregularities.

Future Enhancements Include:

  • Optical Character Recognition
  • Assembly Verification
  • 4-Class Classification
  • Item Counting
  • Identification

Elevating Detection Standards

Leveraging AI and image analytics, the In-Sight SnAPP vision sensors surpass traditional, laser-focused sensors by providing superior precision and performance for any detection task. With In-Sight SnAPP, the potential to do more with sensory technology is limitless:

  • Detect minute details and imperfections.
  • Adapt swiftly to product changes and variances.
  • Conduct comprehensive multi-point checks.
  • Recognize components and elements in any orientation along the production line.

This advancement not only minimizes erroneous detections but also cuts down on waste, thereby boosting overall quality and efficiency.

Simplifying Problem-Solving

The In-Sight SnAPP enables effortless automation of quality control procedures, thanks to its reliance on pre-configured AI, which allows for the easy and quick creation of applications without the need for prior expertise.

  • Guided Setup – Minimize downtime with a straightforward, easy-to-navigate setup process.
  • Browser-Based Interface – Operate In-Sight SnAPP remotely from any location.
  • Code-Free Training – Configure jobs using just a handful of sample images.
  • Effortless Modification – Easily alter or develop new applications via the interface, without the necessity for hardware changes.
  • Seamless Integration – Substitute several laser-based sensors with a singular vision sensor for simplified operation.

Real-Time Application Configuration with VisionView

VisionView is an on-site display panel enabling quick training, modification, and supervision of tasks directly on the production line, eliminating the need for a computer. This technology enhances operational efficiency, simplifies device management, and delivers instant feedback for prompt adjustments to the manufacturing process.

Additional Features

One-Click Image Enhancement

Capture detailed images effortlessly for more precise inspections.

Web HMI compatibility

Manage and review applications without a PC, utilizing an easy-to-use display panel for on-the-spot job updates and monitoring.

Real-time training feedback

Receive immediate feedback on application performance to quickly identify and rectify potential issues

Compact design

Integrate automation seamlessly into any part of your production line thanks to its small size.

Fixturing capabilities

Securely position your inspection area to reliably detect parts and features, regardless of their orientation on the conveyor, ensuring consistent detection results.

IP67 rated

Designed to withstand the rigors of challenging manufacturing settings with its robust build.

LED indicator

Instant visual indicators reflect the sensor’s operational status.

IN-SIGHT SNAPP SPECIFICATIONS
Weight 6.2 mm: 141 g
16 mm: 169 g
Right angle configuration adds 50 g
Power 24 V DC +/- 10% and Power over Ethernet (PoE)
Power Consumption ≤7.5W
Operating Temperature 0–40 °C (32–104 °F)
Storage Temperature -10–60 °C (14–140 °F)
Humidity <95% non-condensing
Environmental IP67
Shock (Shipping and Storage) IEC 60068-2-27: 1000 shocks, semi- sinusoidal, 11 g, 10 ms
ISTA-1A standardized testing – packaged products 150 lb or less
Vibration (Shipping and Storage) IEC 60068-2-6: vibration test in each of the three main axis for 2 hours
@ 10 Gs (10 to 500 Hz at 100m/s2 / 15 mm)
FedEx vibration testing for packaged products 150 lbs or less
High-Speed Outputs 0, 1, 2, 3 IMAX: 50 mA
VOL: ≤ ± 3 V @ 50 mA
Inputs 0 (Trigger), 1, 2, 3 VIL: ≤ ± 6 V
VIH: ≥ ± 12 V
ITYP: 4.2 mA @ 24 V
Ethernet 10/100/1000. Full duplex or half duplex.
Program Storage 20 for each application
Image Sensor 1/2.8-inch CMOS monochrome and color
Image Sensor Properties Pixel size: 2.8 μm (H) x 2.8 μm (V)
Pixels 1440 x 1080 (1.6 MP)
Lens Type Autofocus: 6.2 mm, 16 mm (high speed liquid lens)

Take the complexity out of training

In-Sight SnAPP vision sensors are trained through a web-based user interface (UI), which eliminates the need to download and install software. Using the browser of your choice, you can access the training UI from anywhere and immediately begin building your application.

The user-friendly interface guides you step-by-step through setup, from image capture to final result. Jobs can be trained using just a few sample images and embedded AI takes care of the rest, learning to recognize anomalies and correctly predict the output.

 Download the Cognex Device Discovery Utility

Setting up your In-Sight SnAPP Sensor

Pre-setup: Find the device

Locate your device using the Cognex Device Discovery Utility.

Step 1: Open device and access the home screen

Manage settings and switch between available applications.

Step 2: Adjust image

Define the acquisition area.

Step 3: Set the region of interest

Move and size the bounding box to the area within the image you would like to inspect.*

Step 4: Train

Label images as OK or NG (approximately 3-5 for each class). Add new, unlabeled images and verify results based on the confidence indicator.

Step 5: Finalize

Select trigger mode settings. Choose from either self (sensor triggers itself based on the acquisition rate) or single (sensor is triggered externally).

Post-setup: Enter monitoring view

Switch to the monitoring screen and view the results live.

Expand your automation possibilities

In-Sight SnAPP automates a wide range of quality control tasks, so you can be ready for anything. View the examples below to see how you can use this powerful, yet easy-to-use solution, to solve problems across your production line.

Anomaly Detector

Automotive

Verify proper assembly

Food & Beverage

Inspect packaged items for debris

Electronics

Detect presence/absence of components during assembly

Electric Vehicles

Identify surface-level defects, such as scratches, dents and tears

2-Class Classifier

Automotive

Verify product completeness

Consumer Packaged Goods

Inspect labels on final packaging

Electronics

Confirm presence/absence of components during product assembly

Logistics

Automate process control to ensure items come down the line in the right place at the right time

FEATURED COGNEX PRODUCTS

Contact Westplex Sales

Name & Surname:(Required)
This field is for validation purposes and should be left unchanged.

Get Pricing and information

Name & Surname:(Required)
This field is for validation purposes and should be left unchanged.
