The DataMan 290 is a next-generation, AI-powered barcode reader designed to tackle everything from straightforward scans to the most complex code-reading applications. Equipped with embedded AI, advanced decoding algorithms, and high-performance lighting, it delivers industry-leading read rates in any environment.
With its intuitive setup, automated tuning, and robust support, the DataMan 290 simplifies barcode reading automation—making deployment fast and hassle-free.
No matter your industry, code quality, or application complexity, the DataMan 290 ensures reliable, accurate, and highly efficient scanning operations.
Transform your scanning operations with AI-powered decoding that boosts traceability and accuracy at every stage. The DataMan 290 enables seamless tracking of parts and packages throughout your facility, ensuring efficient and reliable monitoring across production and logistics.
1D and 2D Code Reading: Supports a wide variety of barcode symbologies for flexible performance and built-in scalability.
Printed Code Reading: Accurately reads printed codes on diverse surfaces, enhancing traceability and operational versatility.

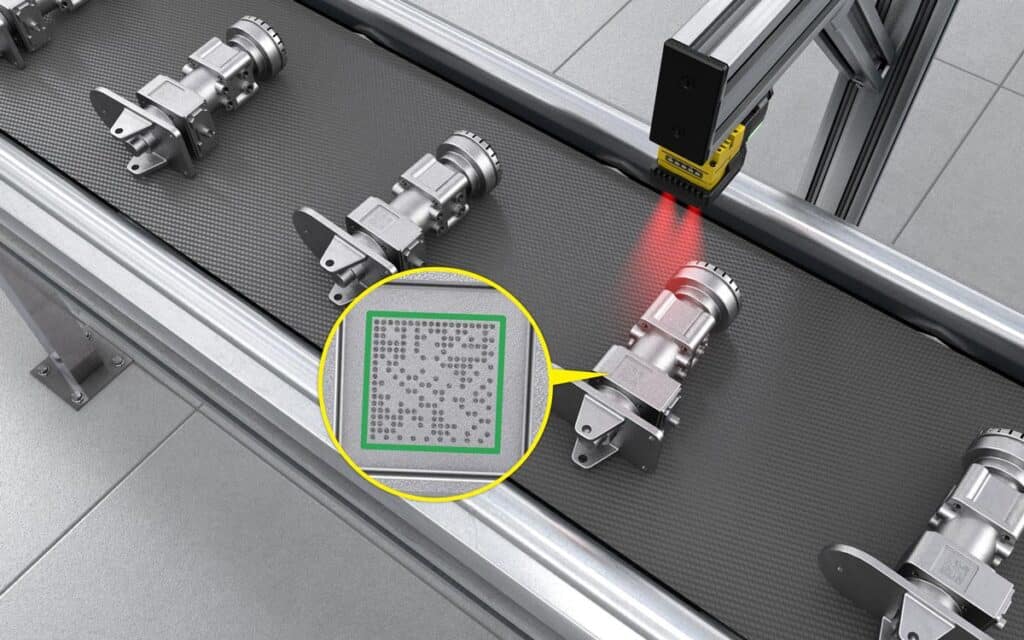

Direct Part Mark Reading: Decodes challenging direct part marks, including tough-to-read dot peen marks, for dependable data capture.
Multi-Code Reading: Scans multiple barcodes simultaneously to increase throughput and streamline processes.
Multi-Reader Sync: Synchronizes multiple readers to cover large areas or address complex scanning scenarios with ease.
AI-guided positioning and tuning
Real-time positioning feedback ensures the code is at the optimal distance from the reader. Then, easily find the right settings with automated tuning.
AI-enhanced decoding
Increase image quality and decode damaged or low-quality codes for more reliable code reading.
AI-powered analysis
Read all code types, including occluded, distorted, or challenging codes with industry-proven decoding algorithms.

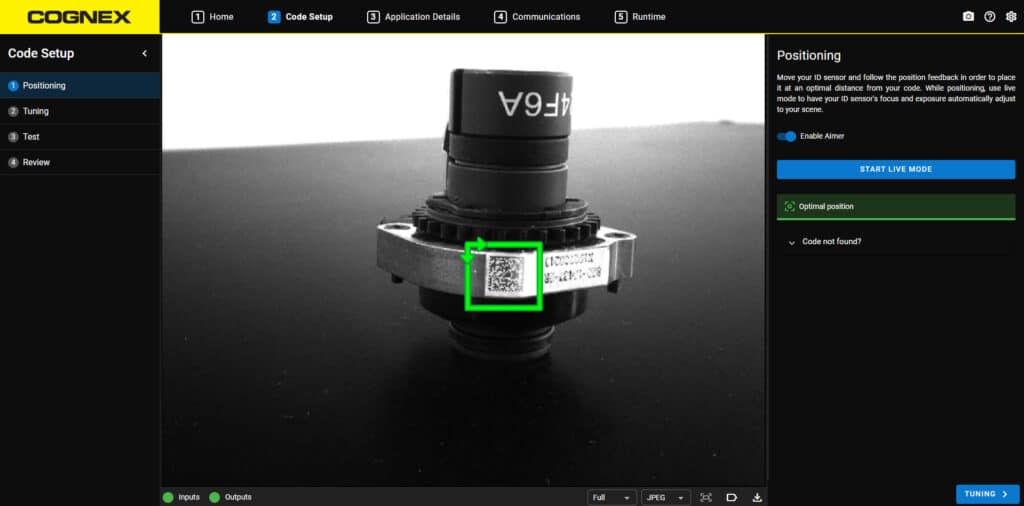

The intuitive web-based UI guides you step-by-step through setup, and AI positioning and tuning save time, reduce errors, and ensure accurate results. If you need additional help, customized training and startup resources are immediately available when you first connect.
| DataMan 290 | |
|---|---|
| Image Sensor | 1/3-inch CMOS, global shutter |
| Image Sensor Properties | Diagonal size: 6.21 mm Pixel size: 3.45 μm (H) |
| Image Resolution | 1440 x 1080 pixels |
| Lens Options | 6.2 mm or 16 mm High Speed Liquid Lens |
| Electronic Shutter Speed | Minimum exposure: 43 μs Maximum exposure: 200 ms (with external illumination) |
| Acquisition | Up to 45 Hz |

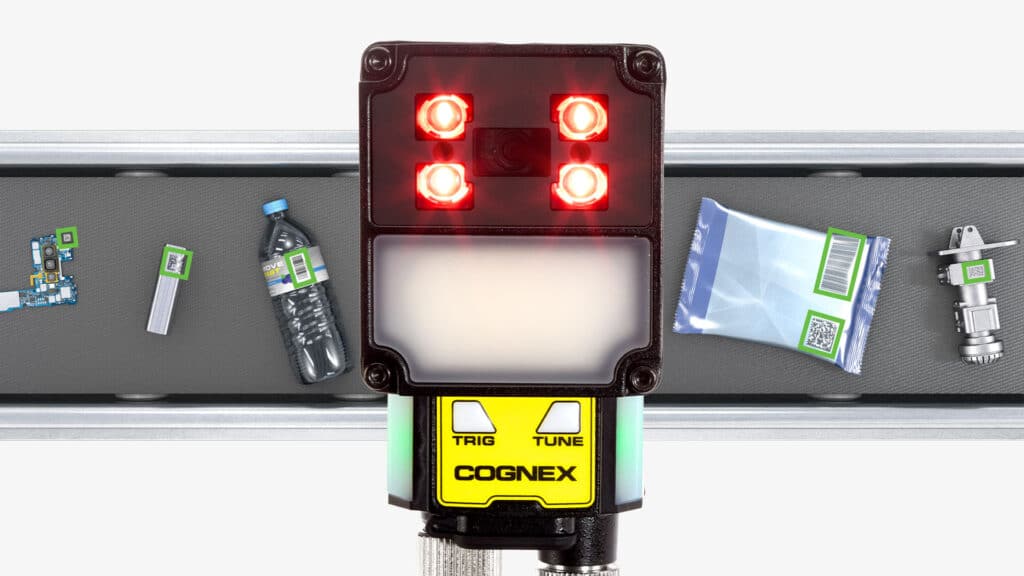

| Lighting | Multi-Purpose Integrated Light: 4 LED lights (red), and 1 Diffused light (white) for 6.2mm and 16mm lens Mini Light: 4 LED high-powered lights (red) for 6.2 mm and 16 mm lens Front cover options: polarized, half-polarized and clear. |
| Status Outputs | 5 status LEDs, audible beeper, 2 visual indicator lights |
| Discrete Inputs | 2 opto-isolated, 2 configurable |
| Discrete Outputs | 2 opto-isolated, 2 configurable |
| Power | 24 V DC +/- 10% |
| Power Consumption | ≤ 7.5 W |
| Weight | Multi-Purpose Integrated Light 6.2 mm Model: 214 g Multi-Purpose Integrated Light 16 mm Model: 234 g Mini Light 6.2 mm Model: 194 g Mini Light 16 mm Model: 169 g |
| Sensor Temperature | 0-70 °C (32-158 °F)* |
| Storage Temperature | -10-60 °C (14-140 °F) |
| Operating and Storage Humidity | <95% non-condensing |
| Shock | IEC 60068-2-27: 1000 shocks, semi-sinusoidal, 11 g, 10 ms ISTA-1A Standardized Testing – Packaged Products 150 lb or less |
| Vibration | IEC 60068-2-6: vibration test in each of the three main axis for 2 hours @ 10 Gs (10 to 500 Hz at 100m/s2 / 15 mm) FedEx Vibration Testing for packaged products 150 lbs or less |
| Environmental | Altitude: 2000 m, indoor use only, pollution degree II |
| Communications | Serial, Ethernet, USB-C, and keyboard compatibility |
| Ethernet | 10/100 BASE-T. Full duplex or half duplex. IEEE802.3 |
| RS-232 | RxD, TxD according to TIA/EIA-232-F |
| Protocols | TCP/IP, PROFINET (class B), EtherNet/IPâ„¢, SLMP, CC-Link, Modbus TCP, NTP, SFTP, FTP, MRS, (Java Scripting enabled for custom protocols) |
| RoHS Certified | Yes |
| Approvals | EU [CE], CB, NRTL, IEC 61010, Korea [KCC], TÃœV, India [BIS] |
