DATAMAN 70 SERIES

COMPACT BARCODE READERS

DataMan 70 Series Features

The DataMan 70 series provides the highest read rates for 1D and 2D label-based barcodes. With advanced image formation and a small footprint, this powerful fixed-mount barcode readers is an effective solution for indexed or high-speed manufacturing and logistics applications.

Reliably reads 1D and 2D codes

Equipped with industry-leading barcode reading algorithms, the DataMan 70 series reliably reads label-based 1D and 2D barcodes with variations in contrast, blur, damage, resolution, quiet zone violations, and perspective distortion.

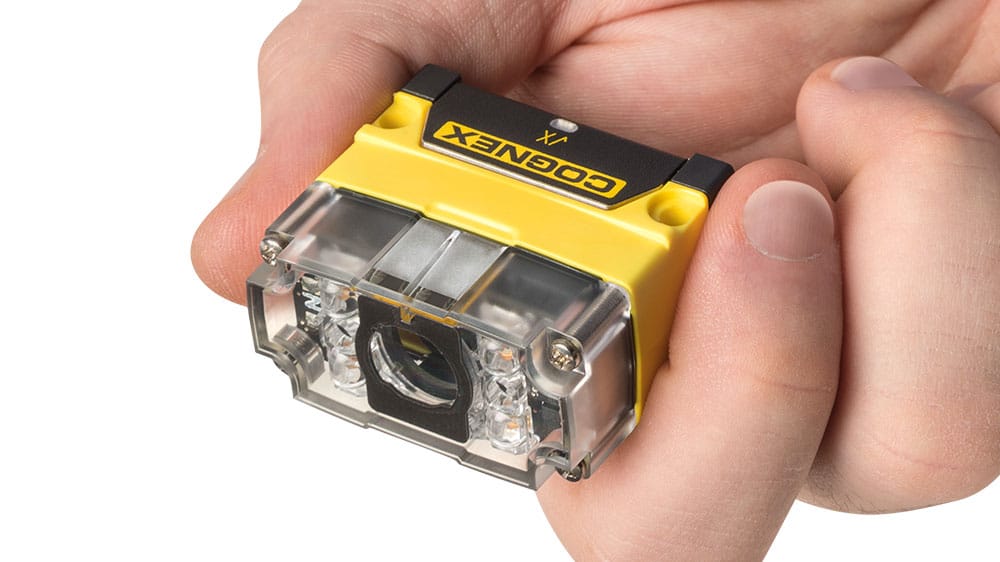

Fits into small spaces

The DataMan 70 series is small enough to fit in the tightest spaces, and with IP65 rated housing, it can also handle the harshest environments. An optional communication module provides the flexibility to daisy-chain multiple readers, making cabling fast and easy.

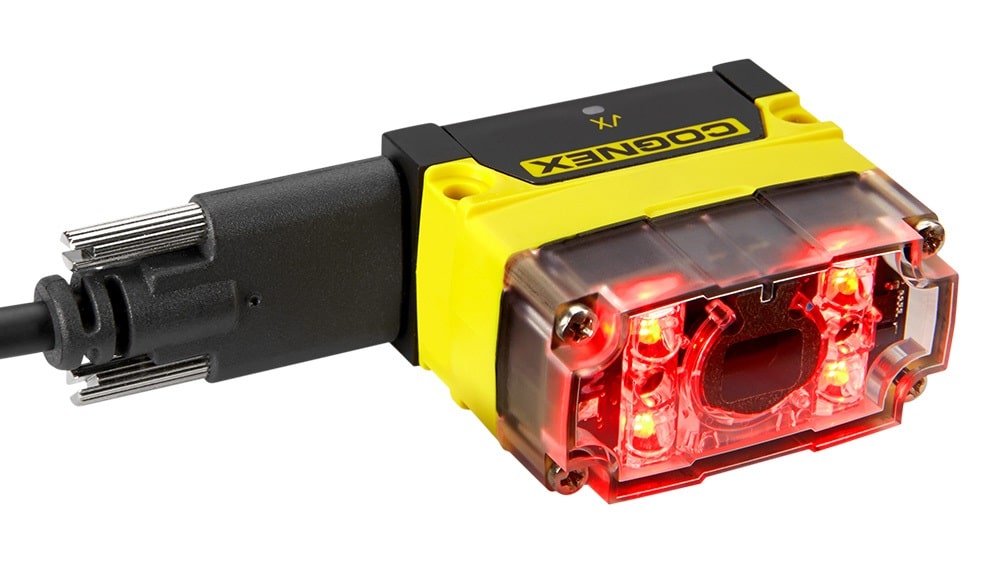

Advanced Image Formation

Flexible configuration options and powerful LEDs and optics create evenly-illuminated, high contrast images for short or long distance code reading, large depths-of-field, and slow or high-speed applications.

DataMan 70 Series Models

DataMan 70 Series Models	72 S	72 L	72 QL	72 Q
1D and Stacked Codes	■	■	■	■
Omnidirectional 1D barcode reading	■		■	■
Label-based 2D Codes	■			■
Algorithms	1DMax HotBars IDQuick	1DMax HotBars		1DMax HotBars IDQuick
Image Resolution	752 x 480 pixels 1280 x 960 pixels
Image Sensor	1/3″ CMOS
Acquisition	2 fps	60 fps
Max Decode Rate	2/second	45/second
Aimer	2 green LEDs

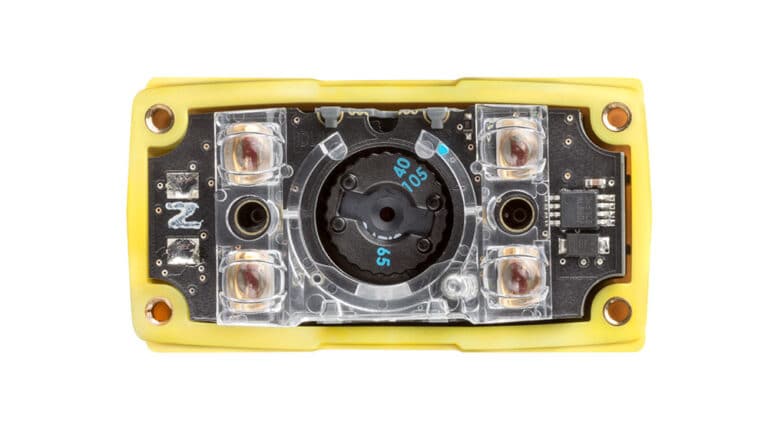

Lens Options	6.2mm f 7.0, 3 position lens with standard or long range focus setting or 16mm f 7.0 manual focus lens
Lighting	4 independently controlled red LEDs (6.2mm lens) or 4 high-power LEDs (16mm lens only)
Discrete I/O	USB: N/A Optional serial accessory cable allows 1IN (trigger only) / 1OUT
Status Output	Status LED on reader indicates: Green (good read) or red (no read)
Power	5 VDC–24 VDC or USB Bus powered, 2.5W
Communication	Integrated USB-C (RS-232 with accessory cable) or industrial Ethernet protocols with communication module
Material	Plastic (polycarbonate)
Dimensions	42.4 mm x 22.2 mm x 38.7 mm
Weight	42 g without cable
Operating Temperature	0 °C–40 °C
Storage Temperature	10 °C–60 °C
Humidity	<95%, non-condensing
Protection	IP65
ROHS Certified	Yes
Approvals (CE, Safety, FCC)	Yes
Standards Compliance	IEC 61340-5-1:2016
Operating Systems	Windows^® 7 and 10
