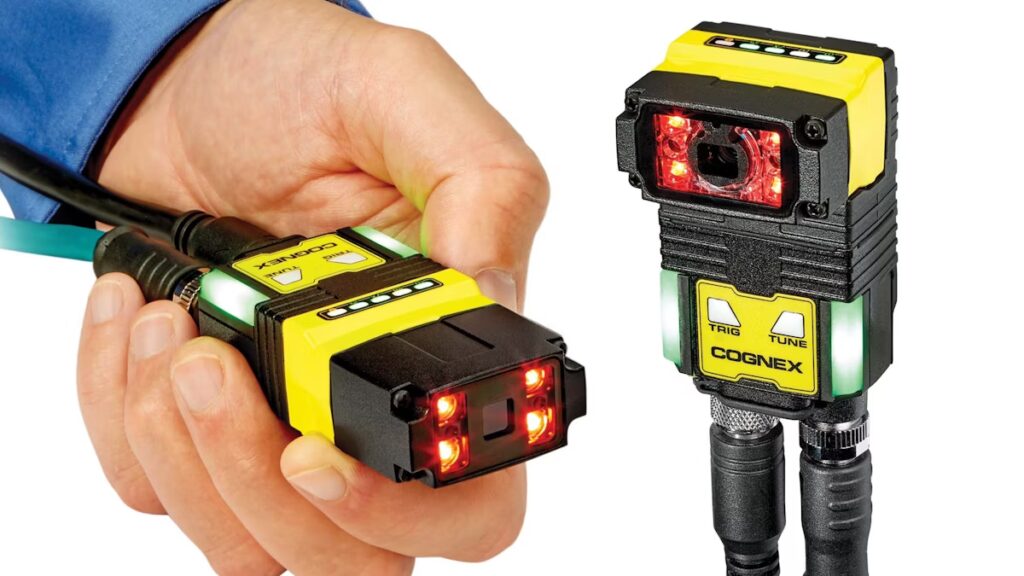

The DataMan 280 is a high-performance, all-purpose barcode reader built to excel across a wide range of code-reading environments. Powered by advanced AI tuning, it delivers exceptional read performance—even on difficult or low-quality codes.
Engineered for both manufacturing and logistics, the DataMan 280 ensures reliable item tracking and traceability at every stage. Whether it’s hands-free scanning in a busy warehouse or decoding direct part markings (DPMs) on the production line, the 280 Series maximizes throughput with industry-leading read rates.

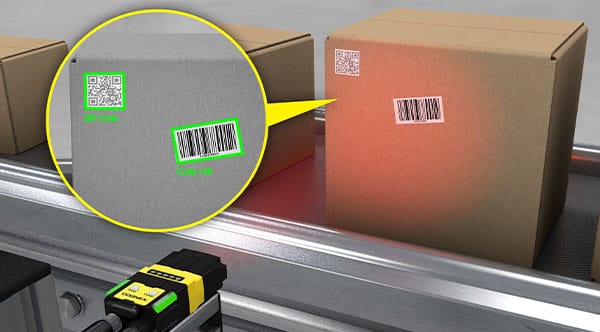

The DataMan 280 Series delivers the versatility and performance needed to tackle even the most demanding code-reading applications in manufacturing and logistics. Designed to adapt to a wide range of environments, these powerful readers achieve unprecedented read rates on both 1D and 2D label-based codes, as well as challenging direct part marks (DPMs).
With the ability to decode damaged, distorted, or obscured codes—even in hands-free scanning scenarios—DataMan 280 readers help facilities boost throughput, streamline workflows, and maximize operational efficiency.

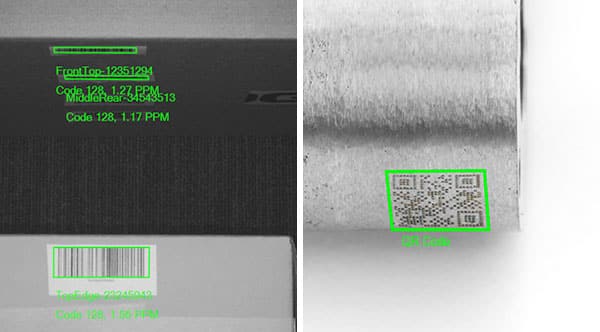

DataMan 280 readers combine cutting-edge decoding algorithms with advanced imaging technologies to deliver exceptional read rates, even in low-light conditions or when codes are damaged or distorted.
Featuring High Dynamic Range (HDR) for enhanced image contrast and clarity, these readers handle a wider range of codes with improved accuracy and efficiency. Additionally, High-Speed Liquid Lens (HSLL) Technology provides fast, precise autofocus without moving parts—making it ideal for high-speed, high-variability applications in dynamic manufacturing and logistics environments.

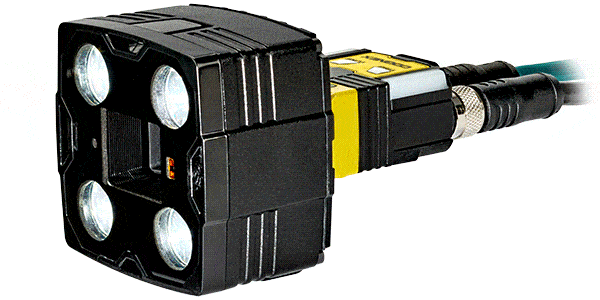

The Cognex High-Powered Integrated Torch (HPIT) empowers operators with one-click control over red, white, blue, and green lighting options—ensuring optimal contrast and code visibility in any environment.
Whether you’re working with reflective surfaces, varying materials, or difficult lighting conditions, HPIT provides the right illumination for every application. Additionally, its multicolor lighting can act as a real-time performance indicator, offering immediate, color-coded feedback to streamline operations and improve user efficiency.
Pair DataMan 280 Series readers with Cognex Edge Intelligence (EI) to transform big data into actionable insights that drive higher equipment effectiveness and increased throughput.

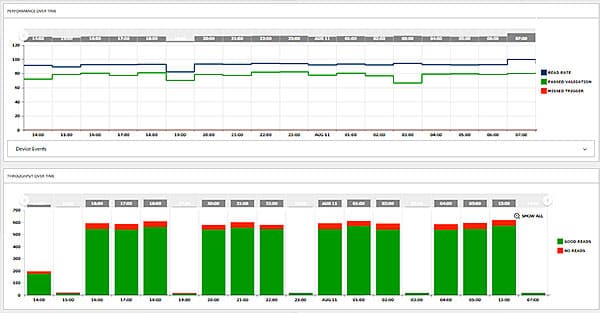

EI simplifies device setup by allowing you to configure multiple readers simultaneously while enabling real-time performance monitoring across your entire operation. When issues arise, EI provides instant alerts and powerful analytics—along with image-based diagnostics—so operators can quickly identify and resolve root causes, minimizing downtime and maximizing productivity.
| Â | DataMan 280 | DataMan 282 |
|---|---|---|
| Algorithms and Technologies | 1DMax, 2DMax, Hotbars, PowerGrid | |
| Image Sensor | 1/3″ CMOS | 1/2.8″ CMOS |
| Image Sensor Properties | Diagonal 6.21 mm, 3.45 μm square pixels | Diagonal 6.17 mm, 2.8 μm square pixels |
| Image Resolution | 1440 x 1080 pixels | 1920 x 1080 pixels |
| Electronic Shutter Speed | Min. exposure: 29 μs Max. exposure: Up to 10 ms (internal illumination) / Up to 200 ms (external illumination) | |
| Acquisition | Up to 45 Hz | |
| Lens Options | 6.2 mm or 16 mm High Speed Liquid Lens | 8 mm, 12 mm, or 16 mm High Speed Liquid Lens |
| Trigger and Tune Buttons | Yes, with Quick Setup Intelligent Tuning | |
| Aimer | 2 LEDs | Laser cross pattern (class 2) |
| Discrete Inputs | 2 opto-isolated, 2 configurable | |
| Discrete Outputs | 2 opto-isolated, 2 configurable | |
| Other I/O Points | 2 user configurable as inputs or outputs | |
| Status Outputs | 5 status LEDs, audible beeper, 2 visual indicator lights | 5 status LEDs, audible beeper, 2 visual indicator lights, 4 HPIT light color options |
| Lighting | Standard: 4 LED lights for 6.2mm lens (red, blue, white, IR, and UV options) HPIL: 4 LED high-powered lights for 16 mm lens (red, white options) Optional bandpass filters. Front cover options: polarized/half-polarized and clear. | HPIT: 4 multi-color LED lights (red, green, blue, and white) Optional bandpass filters. Front cover options: clear, diffused, polarized and dome. |
| Communications | Serial and 1 GB/second Ethernet interface, USB-C, and keyboard capability | |
| Protocols | RS-232, TCP/IP, PROFINET(class B), EtherNet/IPâ„¢, SLMP, Modbus TCP, NTP, SFTP, FTP, MRS, CC-Link Java Scripting enabled for custom protocols | |
| Power | 24V +/- 10% PoE (Power over Ethernet) | 24V +/- 10% |
| Power Consumption | ≤7.5W | |
| Material | Zinc alloy/aluminum | |
| Weight | 6.2 mm: 141 g; 16 mm: 169 g Right angle configuration adds 50 g | 290 g Right angle configuration adds 50g |
| Dimensions | Straight configuration 6.2 mm: 75.5 x 42.4 x 23.6 mm Straight configuration 16 mm: 90.6 x 42.4 x 23.6 mm Right angle configuration 6.2 mm: 78.5 x 42.4 x 37.8 mm Right angle configuration 16 mm: 78.5 x 42.4 x 52.9 mm | |
| Operating Temperature | 0–40 °C (32–104 °F) | |
| Storage Temperature | -10–60 °C (14–140 °F) | |
| Operating and Storage Humidity | <95% non-condensing | |
| Protection | IP67 | |
| RoHS Certified | Yes | |
| Approvals | EU [CE], US [FCC], TUV, CB, NRTL, IEC 61010, Korea [KCC], India [BIS] | |
| Standards Compliance | IEC 61340-5-1:2016 | |
