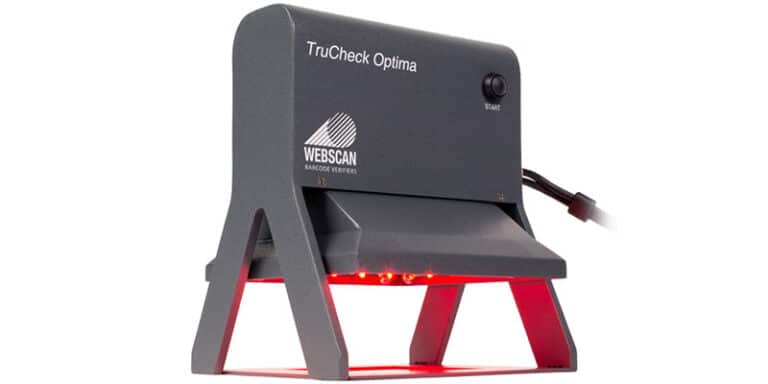

The TruCheck Optima handheld verifier works with all your 1D and 2D barcode symbols. With its integrated illumination, compact size, and three-inch-wide field-of-view, the TruCheck Optima is easy to move across a web of labels, single code, or object.

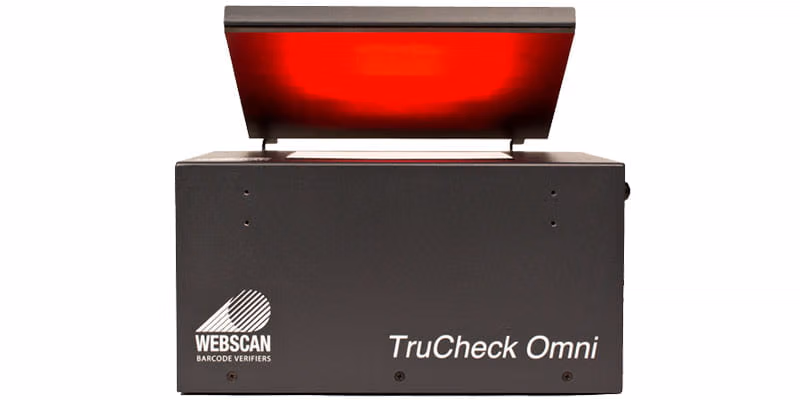

The TruCheck Omni™ has an extra-large field of view (up to 6 inches wide) and super high resolution. You can select multiple regions within your image to verify every barcode on a blister card or several barcodes on a shipping label all at once.

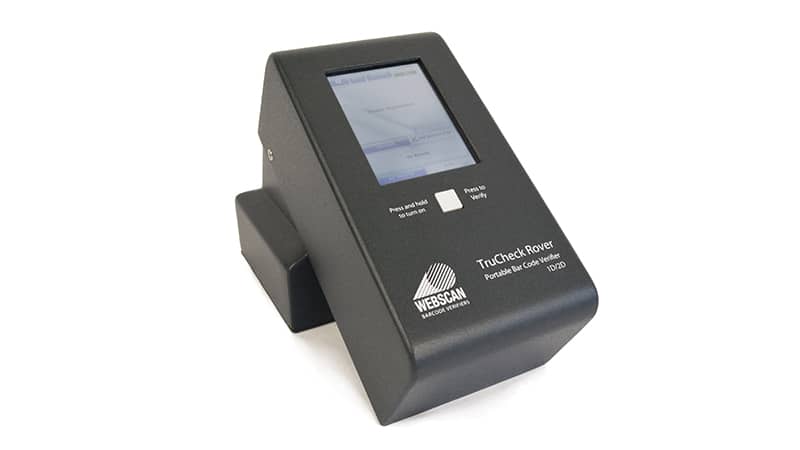

The TruCheck Rover provides complete verification in a portable device using integrated lighting, a rechargeable battery, and touchscreen. ISO compliant 1D, 2D, and DPM verification and diagnostic tools without any connection to a PC or other host computer.
The TruCheck Dome DPM verifier is designed with both dome and 90-degree lighting making it ideal for curved and reflective surfaces. The integrated dome and 90-degree lighting type can handle the widest range of DPM codes marked on a cylindrical part, while the 90-degree lighting setting works well for dot peen codes and codes marked on shiny surface. This ISO-compliant lighting imager head is mounted on an adjustable height for added versatility and flexibility when working with oddly- shaped parts.
| TruCheck Optima Plus | TruCheck Omni | TruCheck Rover | TruCheck FlexHite Dome | |
|---|---|---|---|---|
| Application | 1D and 2D label printed barcodes | Large field of view 1D and 2D label printed barcodes | Simple verification of 1D and 2D label printed barcodes | Verification of DPM barcodes on curved or reflective surfaces |
| Key Feature | Easy to move around | Can verify multiple codes at once | Portable with results shown on a touchscreen, no connection to a computer required | Adjustable height stand |
| Field of View | 75 x 56mm | WA: 150 x 75mm XL: 150 x 112mm HD: 100 x 75mm | WA: 76 x 57mm | STD: 25 x 18mm HD: 19 x 14mm |
| Min X-Dim | 7.5 mil | WA: 7 mil XL: 14 mil HD: 6 mil | 8 mil | STD: 6 mil HD: 3.75 mil |
| Lighting Angle | 45-degree | 45-degree | 45-degree | Dome and 90-degree |
| Dimensions | 7/7.5/8” | 14.625/10.625/7.75” | WA: 7.4/6” | 12/10/15″ |
| Weight | 3 lbs | 12 lbs | WA: 2.8 lbs | 11.6 lbs |
| Data Format Checking | GS1, UDI, HIBCC, UID, MIL-STD-130, ISO 15434 | |||
| Report File Formats | Excel™, Adobe™ PDF, HTML, and text file (Rover PDF or thermal strip printer reports only) | |||
| Grading Standards | ISO 15415, ISO 15416, ISO 15426-1, ISO 15426-2, ISO 16022, ISO 18004, ISO 15438, ISO 24778, ISO 29158 (45Q Only), AS9132 (Dot peen) | |||
