Leveraging the embedded dimensioning, optical character recognition (OCR), and verification tools, you can simultaneously check the placement of codes on parts, read text, verify code quality, and produce International Organization for Standardization (ISO) compliant reports.
Grade your barcodes with confidence with ISO-compliant verification for 1D and 2D codes. The In-Sight 7905V supports the following standards, so you can be assured of the quality of your codes: ISO/IEC 15415, 15416, 29158, 15426-1, 15426-2.
The pre-configured, attached lighting, calibration card, and powerful grading algorithms ensure that In-Sight 7905V conforms to ISO protocols while providing accurate and repeatable grading results. This makes it an ideal verifier for highly regulated industries like medical devices and pharmaceutical, among others.

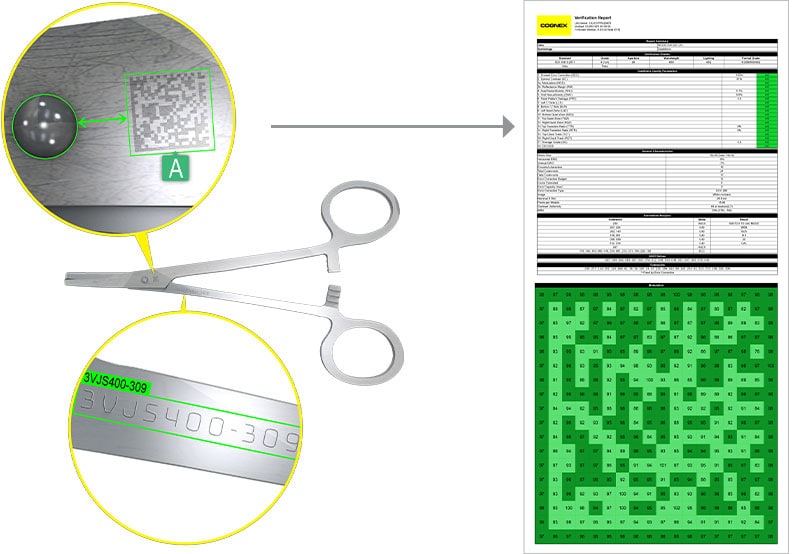

Streamline your operations with the In-Sight 7905V. Using this robust verifier, you can now grade 1D and 2D codes while deciphering human readable text and confirming correct placement of codes on parts. By combining code grading, OCR, and dimensioning capabilities, you can do more with less and save significant resources compared to building a custom solution to achieve the same functionality. Beyond vision and verification capabilities, you can leverage the embedded diagnostic tools to gain more insight and specifically pinpoint quality issues.

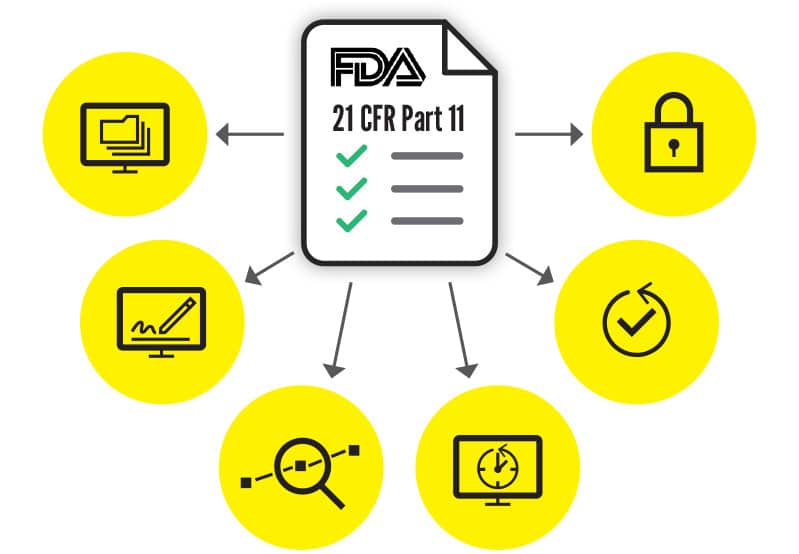

21 CFR Part 11 is a Food and Drug Administration regulation that ensures accountability and traceability in managing electronic documents. Among other requirements, it enforces companies to secure data and track user logins and software changes. In-Sight 7905V allows you to generate reports that detail these changes, providing an audit trail for 21 CFR Part 11 compliance. It can also be connected to the Cognex Network Server (CNS) for added security, which helps you get closer to being fully compliant and takes the stress out of adhering to these demanding standards.
| In-Sight 7905 | Label | In-Sight 7905 | DPM | |
|---|---|---|
| Lighting Types | 660 nm, 45°, 4-quadrant | 660 nm, 45°, 4-quadrant 660 nm, 30°, 1-quadrant, 2 quadrant, 4-quadrant 660 nm, 90° |
| Symbologies | 1D: UPC/EAN, Code 128, ITF-14, I25, Code 39, Code 93, Codabar 2D: Data Matrix (ECC 200), QR Code, Micro QR Code, PDF417 | 1D: UPC/EAN, Code 128, Code 39 2D: Data Matrix (ECC 200), QR Code, Micro QR Code |
| Field of View | 80 x 60 mm | 35 x 29 mm |
| Working Distance | 60 mm | 41 mm |
| Depth of Field (WD Tolerance) | +/- 3 mm | 5 mil symbols: +/- 1.5 mm 15 mil symbols: +/- 2.5 mm |
| Minimum X-Dimension | 6 mil (0.15 mm) | 3.75 mil (0.095 mm) |
| Image Sensor | Sony IMX264LLR 5 MP (2448 x 2048 pixels) 2/3 inch CMOS, global shutter 8.8 mm x 6.6 mm (H x V); 3.45 μm square pixels | |
| Lens Type | 12 mm fixed focal length, f/4 fixed aperture, 2/3 inch sensor format, C-mount lens (users cannot alter lens) | 35 mm fixed focal length, f/4 fixed aperture, 2/3 inch sensor format, C-mount lens (users cannot alter lens) |
| Communications | Ethernet | |
| Power Consumption | 24 VDC±10%, 1.5 A max (36 W peak) | |
| Weight | 839 g (1.85 lb) | 1814 g (4.00 lb) |
| Dimensions | 185 x 185 x 128 mm | 236 x 193 x 145 mm |
| Approvals | CE, TUV, FCC, KC | |
| Industry Standards Compliance | ISO/IEC 15415, ISO/IEC 15416, ISO/IEC TR 29158, ISO/IEC 15426-1, ISO/IEC 15426-2 | |
| Application Standards | GS1, MIL-STD-130 UID, UDI, HIBCC, ISO 15434, Russian Crypto-Code, Custom Application Standards | |
| Maximum Codes per Second | 1D: ~20 codes/second¹ 2D: ~10 codes/second¹ | 1D: ~20 codes/second¹ 2D: ~10 codes/second¹ |
| Maximum Linear Line Speed | 1.1 m/second (3.6 ft/second) | 1.4 m/sec (4.6 ft/sec) |
| Coplanarity Tolerance | +/- 3° of coplanar | +/- 2° of coplanar |
