HIKMICRO SP SERIES

Ultra-high performance and maximum flexibility

SuperIR – Advanced Thermal Imaging Redefined

Powered by HIKMICRO SuperIR Image Enhancement
SuperIR technology upscales images 4X, delivering highly detailed live and recorded radiometric images for precise inspection and reporting.

One-Second Fast Focusing
Experience rapid focusing with support for five focus modes:
– Laser-Assisted AF
– Continuous AF
– AF (Auto Focus)
– Manual Focus
– Touch AF

With a focus speed of just one second, SuperIR optimizes image clarity and ensures accurate measurements.

Flexible Rotating Lens and Screen
A 90° rotating screen and a 180° rotating lens make it easy to inspect areas around, between, above, or below the target. This design ensures safer, more flexible inspections.

Built for the Outdoors
– Water and dust resistant (IP54)
– Drop-tested from 1m height
– 1024 x 768 OLED electronic viewfinder

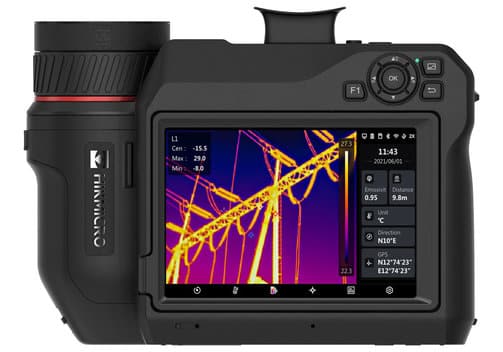

– 5.1-inch OLED touchscreen with 1920 × 1080 resolution and auto-brightness
(Available on SP120H only)

Designed for bright and challenging outdoor conditions, SuperIR ensures reliable performance in harsh environments.

1-Tap Level & Span
Supports three level/span modes:
– Manual
– Automatic
– 1-Tap

Enhance image contrast instantly and highlight potential issues effortlessly.

Extreme Temperature Measurement
Handle industrial and high-temperature applications with a measurement range of up to 2200°C (3992°F). Ideal for:
– Industrial furnaces
– Refractory inspections
– Metal smelting tools and fixtures
(Available on SP40H, SP60H, and SP120H)

High-Precision Detection
Integrating advanced detection technologies:
– <20mK NETD
– 12 μm detector pitch
– 0.34 mrad IFOV

High-Definition Thermal Detail technology enhances sensitivity and clarity, revealing intricate thermal details. (SP120H only)

Interchangeable Battery System
Includes two Li-ion batteries and a dual bay charger, offering up to 8 hours of continuous operation, ensuring uninterrupted performance for extended inspections.

Versatile Interchangeable Lenses
Choose the right field of view for your inspections with interchangeable lenses. Capture detailed images and measure small issues with greater precision.

SuperIR – Precision, Performance, and Versatility in Thermal Imaging.

Embedded Laser Distance Meter
An integrated laser distance meter provides accurate distance and area measurement from long distances, making parameter settings and report generation more convenient.

5 Image Modes
Choose from five imaging modes to suit your preference:
– Thermal
– Fusion
– PIP (Picture-in-Picture)
– Visual
– Blending

Complete Image Annotations
Quickly annotate your images with voice, text, or QR codes. Add GPS and compass direction to outdoor images for precise geolocation data.

Continuous Digital Zoom
Enjoy 1.0x to 12.0x continuous digital zoom to reveal more image details.

Precise, Flexible, and Stable Microscope Stand
Paired with a macro lens, it transforms into a thermal imaging microscope, ideal for temperature observation of tiny details. Connect with HIKMICRO Analyzers for real-time viewing and analysis. (SP40/SP40H/SP60/SP60H Only)

HIKMICRO Analyzer
HIKMICRO Analyzer is a powerful, free licensed PC software designed to help users manage and analyze thousands of thermal images and videos, and quickly create professional reports. It is fully compatible with files from HIKMICRO handheld thermal cameras, streamlining your workflow and boosting productivity.

Convenient Image and Report Sharing
Easily connect to the HIKMICRO Viewer App via Wi-Fi to transfer photos and videos from your camera to a mobile device. Analyze, share images, and generate reports in real-time, on-site.
