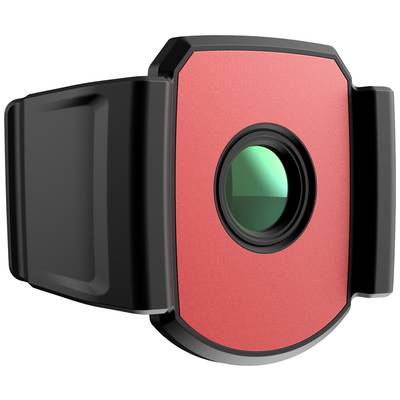

HIKMICRO HM-B201-MACRO

The HIKMICRO HM-B201-MACRO is a specialized macro lens designed to enhance the functionality of HIKMICRO’s B Series thermal imaging cameras, including models such as B1L, B2L, B10, and B20. This accessory enables detailed thermal inspections of small components, making it particularly useful for applications like evaluating printed circuit board (PCB) hot spots and inspecting miniature electronic parts.

Key Features:

– High Precision: Offers a measurement accuracy of up to ±3°C (±5.4°F) or ±3%, applicable for object temperatures between 0°C (32°F) and 150°C (302°F).

– Enhanced Detail Detection: Capable of imaging targets as small as 100 µm × 100 µm, allowing for the identification of minute details.

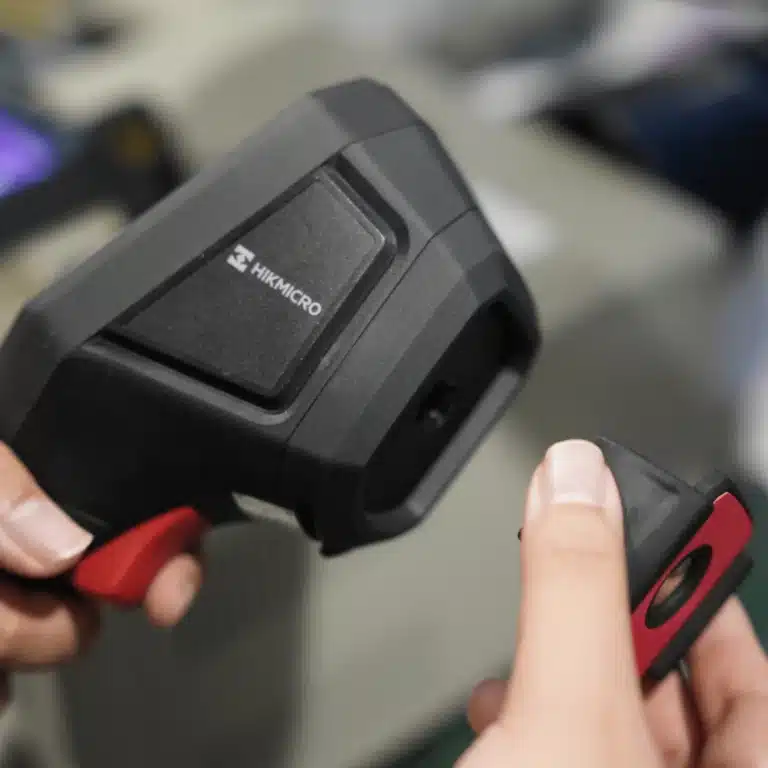

– User-Friendly Installation: Easily attaches to compatible cameras without the need for additional calibration, facilitating immediate use.

– Optimized Working Distance: Designed for a focusing distance of 30 mm ± 1 mm (1.18” ± 0.04”), ensuring clear imaging of small objects.

– Compact and Lightweight: Measures 51.4 mm × 65 mm × 25 mm (2.02” × 2.56” × 0.98”) and weighs approximately 14 g (0.03 lb), making it convenient for field use.

By integrating the HM-B201-MACRO lens with your B Series thermal camera, you can significantly improve the inspection and analysis of small-scale components, leading to more precise diagnostics and evaluations.
