Boost traceability and operational efficiency with barcode readers engineered to handle the most challenging codes in the harshest manufacturing environments.
The DataMan Series excels at reading worn, damaged, and direct part marks (DPMs) on components—while enduring exposure to oil, water, dirt, and repeated impact.
With a built-in OLED display and support for a wide range of industrial protocols, setup and feedback are fast and intuitive—so you can deploy quickly, scan confidently, and keep your operations moving.

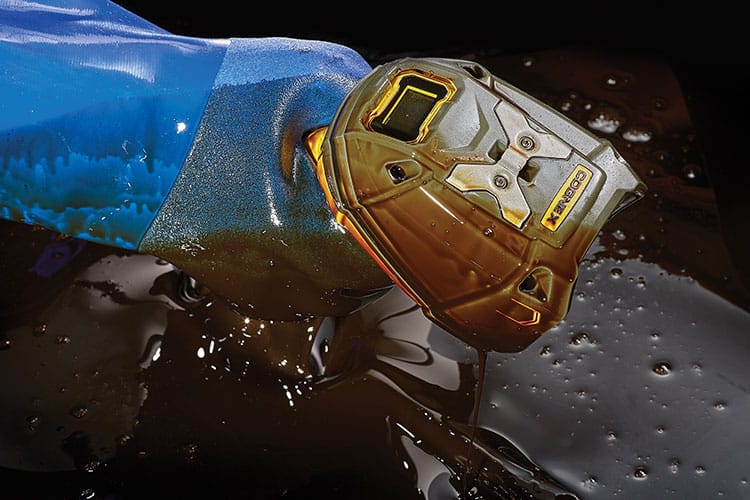

DataMan 8700 series readers are built to endure relentless manufacturing environments, improving throughput and operational efficiency by thriving where other readers fail. With resilient IP67-rated housing, DataMan 8700 series readers adhere to ISO oil-resistance standards, can function in up to one meter of water, and can withstand multiple drops from 2.5 meters onto concrete.

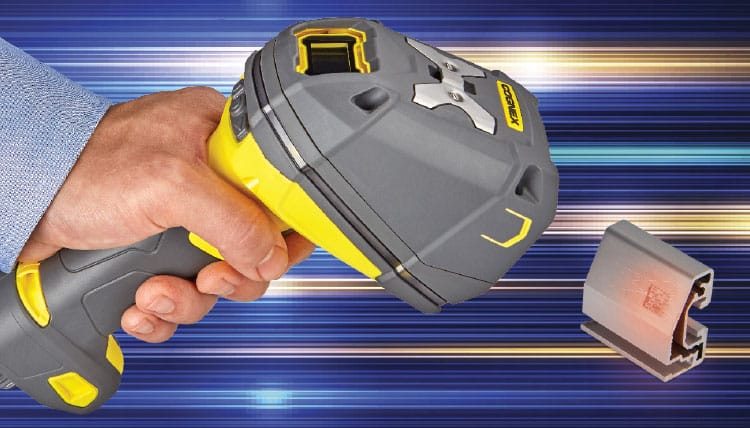

The DataMan 8700DX model is equipped with the latest patented decoding algorithms, HDR technology, high speed liquid lens, and a multi-core processor to read codes in under 150 milliseconds. Integrated diffuse, polarized, and direct lighting enables superior image formation to read dot peen, laser-etched, and label-based codes on challenging (shiny, cylindrical, dark) surfaces without any hot spots.

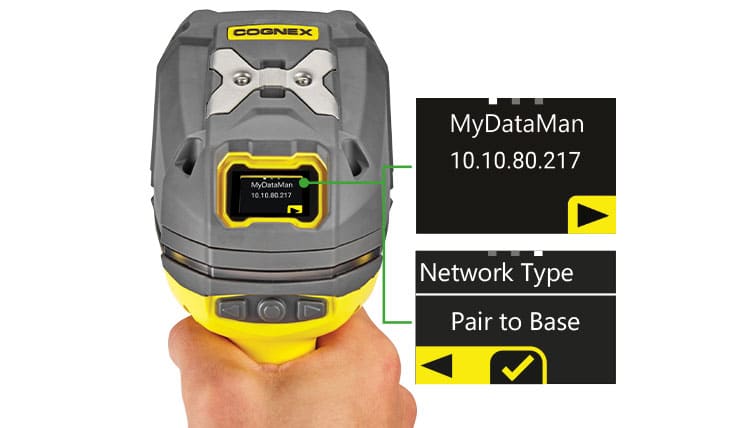

The reader’s OLED display screen and on-device controls enable operators to set up and start scanning without connecting to a PC.
On-board industrial protocols enable the DataMan 8700 to seamlessly connect to PLCs and networks. DataMan 8700 supports multiple communication options including corded and wireless options:
| DX | DQ | LX | HD | |
|---|---|---|---|---|
 |  |  |  | |
| Challenging DPM codes* | X | |||
| Well-marked DPM codes* | X | X | X | |
| Printed labels | X | X | X | |
| High Speed Liquid Lens (HSLL) | X | |||
| Minimum 1D/2D CodeSize | 3 mil / 5 mil | 4 mil / 5 mil | 2 mil / 2 mil | |
| Illumination | Integrated red diffuse, polarized, and direct | White diffuse | Red direct | Red diffuse |
| Connectivity | ||||
| Ethernet with industrial protocols | X | X | X | X |
| USB | X | X | X | X |
| RS-232 | X | X | X | X |
| Bluetooth direct connect | X | X | X | X |
| Wi-Fi | X | X | X | X |
| Bluetooth to Base Station | X | X | X | X |
*Well-marked DPM codes can come in a number of forms including dot peen, laser-etched, inkjet, etc. What separates a challenging versus a well-marked DPM code is damage or wear and tear on a code, shiny or textured backgrounds, or improper marking.
| Algorithms | 1DMax, 2DMax, Hotbars, PowerGrid |
| Resolution | 1.6MP |
| Status Outputs | OLED display, LED ring light, beeper, vibration |
| Communications | Serial: RS-232 and USB Ethernet: TCP/IP, FTP, industrial protocols: EtherNet/IP, PROFINET, MC protocol, Modbus TCP Intelligent base station: RS-232, USB, Ethernet, industrial protocols Bluetooth connectivity: smartphone, intelligent base station, Bluetooth enabled tablet or PC Wireless infrastructure mode connectivity: PC through Wi-Fi router |
| Symbologies | 1D: UPC/EAN/JAN, Codabar, Interleaved 2 of 5, Code 39, Code 128, Code 93, POSTNET, PLANET Code, IMB, Postal 2D: Data Matrix, QR, MicroQR, PDF417, MaxiCode, Aztec |
| Operating Temperature | 0°C–40°C (32°F–104°F) |
| Storage Temperature | -40°C–60°C (-40°F–140°F) |
| Maximum Humidity | 95% (non-condensing) |
| Power Supply Requirements | DataMan 8700 with serial/USB: 5.5 V DC, 6.0 W maximum LPS or NEC Class 2 power supply DataMan 8700 with Ethernet: PoE Class 2 power supply DataMan 8700 with Bluetooth: 3.7 V, 5000 mAh Li-ion battery DataMan Intelligent Base Station: 5.5 V DC, 6 W maximum LPS or NEC Class 2 power supply or PoE Class 2 power supply |
| Wireless Unit Scans per Full Charge | 125,000+ |
| Protection | Handheld reader: IP67; Base station: IP65 |
| Drop Test | Multiple drops from 2.5 meters |
| Tumble Test | 5,000 tumbles from 1 meter |
| Environmental | Compliant with latest EU RoHS and China RoHS |
| Regulatory | EU: CE EMC & RED; USA/Canada: cTÜVus IEC 61010-1, part 15, ICES 03; Korea: KCC; India: BIS and WPC; China: SRRC; Brazil: ANATEL; Mexico: NOM and IFETEL; Japan: MIC |
| Data Validation | US DoD UID guidelines, GS-1, ISO15434 and ISO15418 |
| Operating System | Windows 7 and Windows 10 |
| 8700DX | 8700DQ | 8700LX | 8700HD | ||
|---|---|---|---|---|---|
| Lens | 8 mm lens with liquid lens | 6.2 mm fixed lens | 8 mm fixed lens | 12 mm fixed lens | |
| Lighting | Red diffuse, polarized, direct | White diffuse | Red direct | Red diffuse | |
| Aimer | On-axis green LED aimer | On-axis green LED aimer | Dual off-axis green LED aimers | ||
| Minimum 1D/2D CodeSize | 3 mil / 5 mil | 4 mil / 5 mil | 2 mil / 2 mil | ||
| Dimensions | Wireless | 221 mm (H) x 114.1 mm (L) | 211.4 mm (H) x 113.1 mm (L) | ||
| Corded | 233.2mm (H) x114.1mm (L) | 223.4 mm (H) x 113.1 mm (L) | |||
| Weight | Wireless | 548 g (battery included) | 479 g (battery included) | 489 g (battery included) | |
| Corded | 450 g (+approx.130 g forcables) | 395 g (+ approx. 130 g forcables) | 405 g (+approx. 130 g for cables) | ||
