Barcode verification is the process of grading the quality of barcodes. Barcode verifiers capture images and generate reports to demonstrate compliance to parameters within industry standardization guidelines.
The DataMan 8072 series barcode verifier is packed with powerful lighting options, robust grading algorithms, a high-speed processing engine, and a high-resolution camera to capture and grade the most difficult direct part mark (DPM) codes. Combined with simple DataMan Setup Tool software, DataMan 8072 series verifiers deliver detailed, repeatable results.

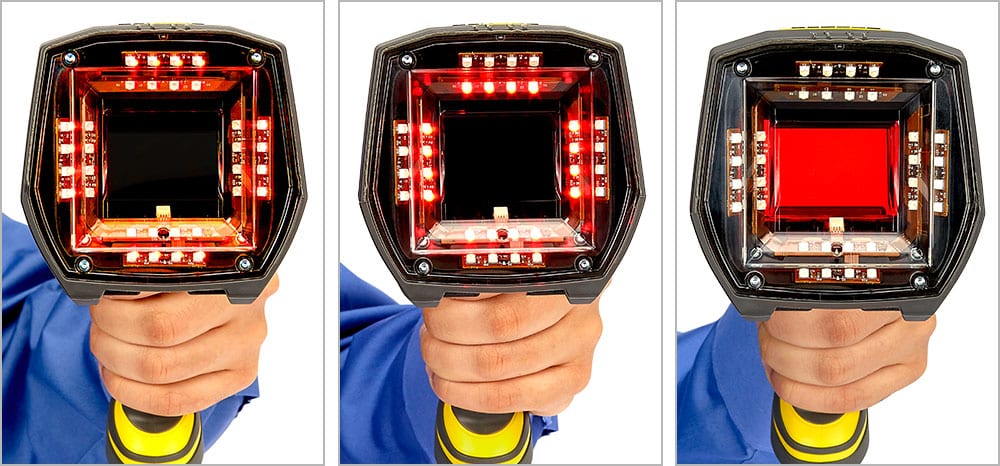

DataMan 8072 verifier is the only verifier with all three, 30/45/90-degree, lighting angle options specified in the International Organization for Standardization (ISO) AIM DPM Quality Guideline (ISO/IEC TR 29158). It easily illuminates codes on textured, curved, and even highly reflective surfaces, reliably capturing and grading code images to demonstrate code quality compliance.

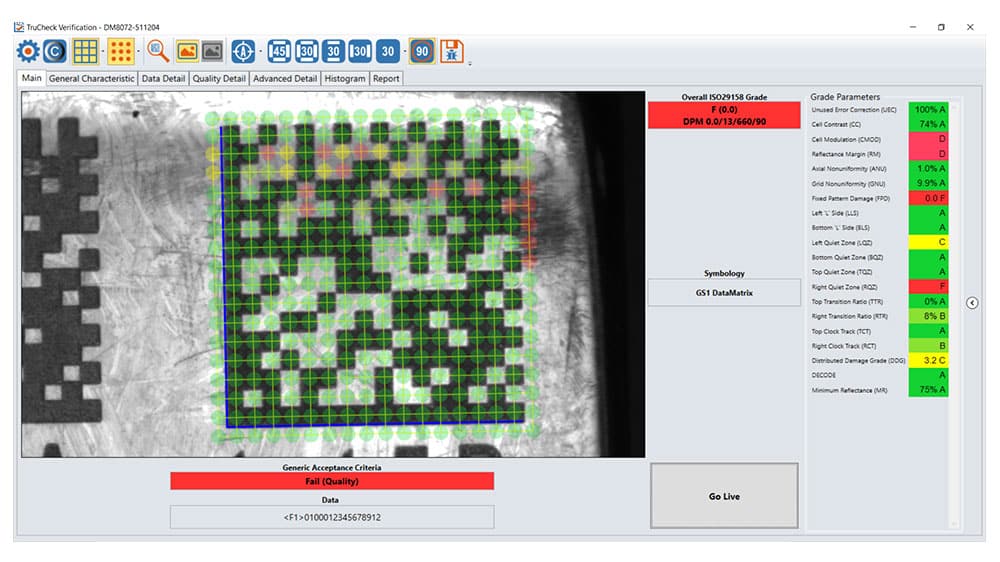

High-speed location and decoding capabilities combined with robust grading algorithms provide fast, accurate, and repeatable results. Detailed reports show whether codes meet industry standards and can be used to demonstrate compliance, as well as pinpoint printing and process control issues.

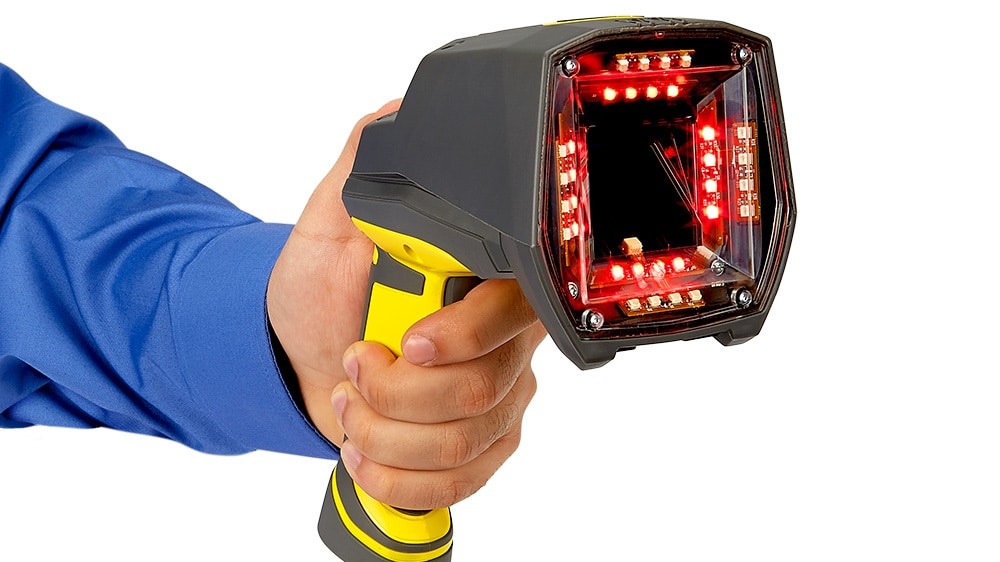

The DataMan 8072 series verifier has an ergonomic, handheld scanner-like design that is easy to maneuver. A small imaging head gives users better access to codes in recessed or hard-to-reach locations. The DataMan 8072 verifier is the only verifier on the market with an IP65 rating and rugged housing to withstand even the harshest factory floor environments.
| DataMan 8072V | DataMan 8072V HD |
|---|---|
| Symbologies | Data Matrix, QR code |
| Field of View | 27 x 20 mm | 17×13 mm |
| Minimum X-Dimension | 6.0 mil | 3.5 mil |
| Image Sensor | 1.2 MP |
| Lighting | 30-, 45-, and 90-degree options |
| Lighting Type | 660 nm red LED |
| Communications | USB and Ethernet |
| Power Consumption | USB: 6V and 1.0A Ethernet: PoE Class 2 power supply |
| Weight | 572 g without cable |
| Dimensions | 106 mm x 189 mm x 189 mm |
| Protection | IP65 |
| Approvals (CE, UL, FCC) | CE Certified |
| Industry Standards Compliance | ISO/IEC 15415, TR-29158 (AIM DPM) Calibration card included.* |
| Application Standards | GS1, MIL-STD 130 UID, UDI, HIBCC, ISO 15434 |
| ESD Standards Compliance | None |
| Operating System | Windows |
| Software Interface | DataMan Setup Tool |
