| DataMan 8050 | DataMan 8050X | DataMan 8050HDX |
|---|---|---|
| Algorithms | 1DMax with Hotbars | 1DMax with Hotbars, 2DMax, PowerGrid |
| Image Sensor | 752 x 480 global shutter | |
| Trigger | Handle trigger, presentation | |
| Status Outputs | LED, beeper | |
| Aimer | Centralized LED aimer | |
| Lens Options | Fixed focus | |
| Lighting | Integrated LED with near/far optics | |
| Communication | Serial module: RS-232, USB Ethernet module: TCP/IP, FTP, industrial protocols: Ethernet/IP, PROFINET, MC Protocol, ModBus TCP | |
| Dimensions | 210 mm x 155 mm x 85 mm | |
| Depth of Field | 7 mil 2D Code: Up to 40 mm 10 mil 2D Code: Up to 80 mm 6 mil Code39: Up to 90 mm | 4 mil 2D Code: Up to 55 mm 5 mil 2D Code: Up to 75 mm |
| Protection | IP65 | |

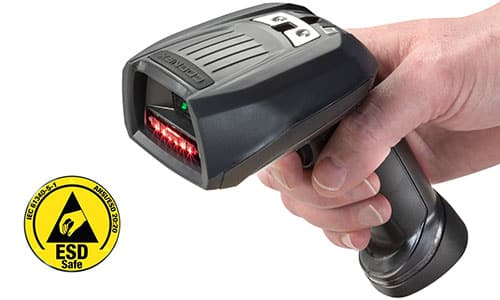

| ESD Standards Compliance | IEC 61340-5-1:2016 for select models only | |
