High-speed code reading for your most challenging logistics applications

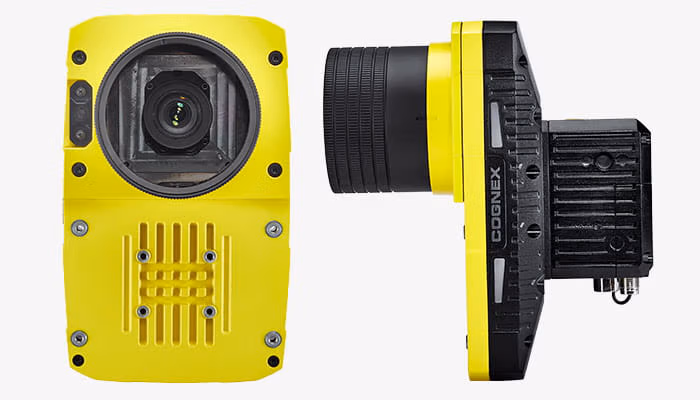

Unlock maximum efficiency and accuracy in your sortation operations by integrating the DataMan 580 into your Cognex Modular Vision Tunnel. Engineered with advanced hardware and intuitive software, the DataMan 580 delivers fast, precise multi-symbology reading—even on high-speed lines with minimal package gaps.
Key Benefits of the DataMan 580:
Read More, Faster: Advanced decoding algorithms are optimized for multi-code and multi-symbology labels, delivering unmatched read rates.
Boost Throughput: Maintain high line speeds and short package gaps without sacrificing accuracy.
Improve Traceability: Verify label dimensions and placement in real time to enhance traceability and ensure vendor compliance.
Streamline Integration: Simplify deployment and upkeep with easy setup and maintenance tools built for multi-reader systems.
Get the reliability and speed your high-throughput environment demands—every code, every time.

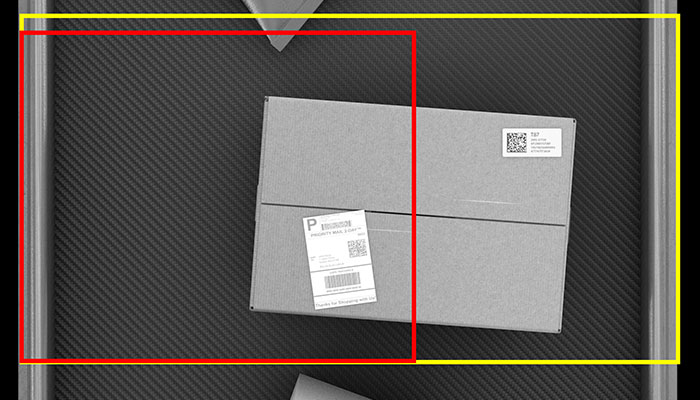

Simplify and cost-reduce your scanning solutions with optimal coverage across wide conveyors, while acquiring images fast enough to accommodate the highest speed lines. The DataMan 580’s high-resolution 9MP sensor enables greater field-of-view and depth-of-field coverage to support the most demanding sortation applications.

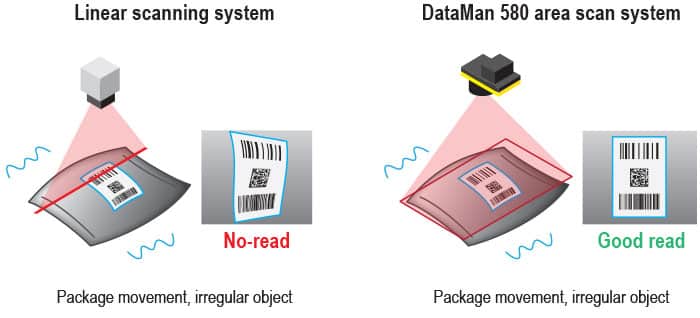

Conventional linear scanning systems struggle to read packages that have uncontrolled movement or irregular shapes, which can distort images and lower read rates. The DataMan 580’s high resolution area scan sensor ensures optimal images and high read rates, regardless of the material handling environment.

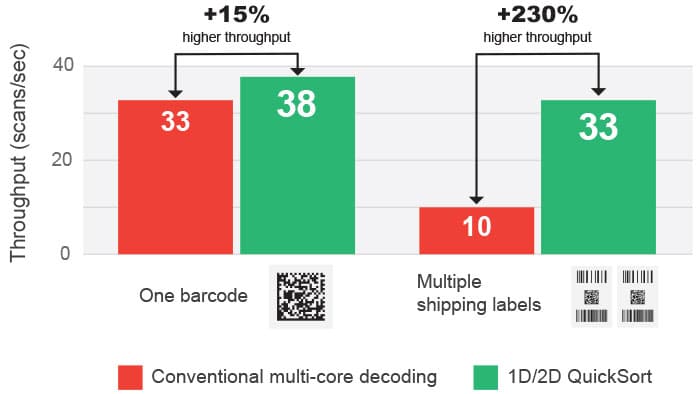

The DataMan 580 leverages 1D/2D QuickSort™, a proprietary algorithm that empowers Cognex Modular Vision Tunnels to decode up to three times faster than conventional methods by simultaneously reading multiple codes and labels on a package. Conventional readers hinder throughput by requiring more space between each item to accurately read multi-symbology and multi-label packages.

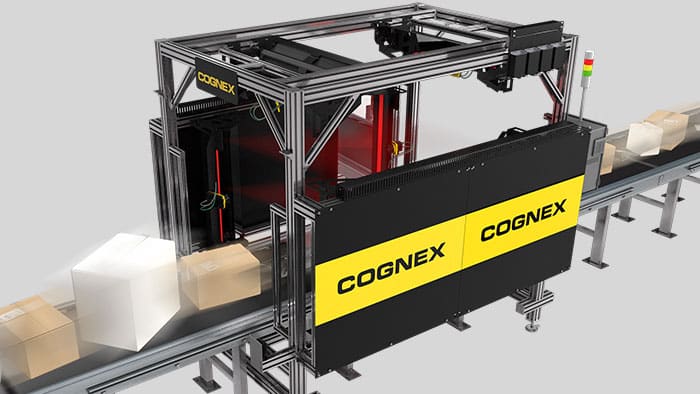

DataMan 580 barcode readers and designed for the Cognex Modular Vision Tunnel (MVT). Each MVT contains barcode reading modules and hardware components that can be easily modified and scaled to support changing business and application needs. This adaptable system allows you to change reader modules to accommodate different codes, package sizes, or line speeds, as well as add new symbologies.

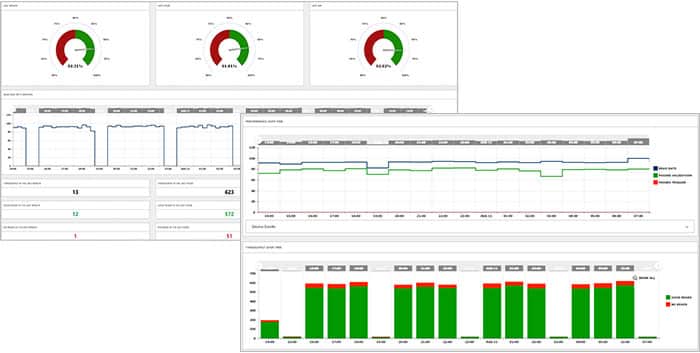

Cognex Edge Intelligence (EI) technology transforms big data into smart data, improving overall equipment effectiveness and throughput. EI allows users to configure multiple devices simultaneously, facilitating immediate system performance monitoring and analysis. The technology informs users when issues occur, allowing operators to identify and resolve root causes faster using powerful analytics and image view tools.
| DataMan 580 Specifications | |
|---|---|
| Image Sensor | 2/3″ CMOS |
| Image Sensor Properties | Diagonal size: 12.96 mm, Pixel area: 7.84 μm2 |
| Image Resolution | 4096 x 2160 pixels |
| Electronic Shutter Speed | Min. exposure: 29 μs Max. exposure: Up to 10 ms (internal illumination) / Up to 400 ms (external illumination) |
| Acquisition | Up to 38 Hz |
| Lens Options | 16 mm F6, 25 mm F6.5, 35 mm F6 (manual or high speed liquid lens) |
| Trigger and Tune Buttons | Yes |
| Discrete Inputs | 2 opto-isolated, 2 configurable |
| Discrete Outputs | 2 opto-isolated, 2 configurable |
| Other I/O Points | 2 user configurable as inputs or outputs |
| Status Outputs | 5 status LEDs, audible beeper |
| Communications | Serial, Dual Ethernet, and CogLink interface |
| Protocols | RS-232, TCP/IP, PROFINET, EtherNet/IP™, SLMP, Modbus TCP, NTP, SFTP, FTP, MRS, CC-Link Java Scripting enabled for custom protocols |
| Power | 24V +/- 10% PoE (Power over Ethernet) Class 3 |
| Power Consumption | < 15W without illumination < 40W with external illumination peak < 2A |
| Material | Zinc alloy/aluminum |
| Weight | 1780g |
| Operating and Storage Humidity | 0–40° C (32–104° F) |
| Storage Temperature | -10–60° C (14–140° F) |
| Protection | IP67 |
| RoHS Certified | Yes |
| Approvals | EU [CE], US [FCC], TUV, CB, NRTL, IEC 61010, Korea [KCC], India [BIS] |
