The DataMan 475VS series offers robust grading algorithms, diagnostic tools, and reporting options for offline barcode verification. The adjustable stand and built-in software focusing feature provide users with an easy, fast, and accurate way to present labels and parts.

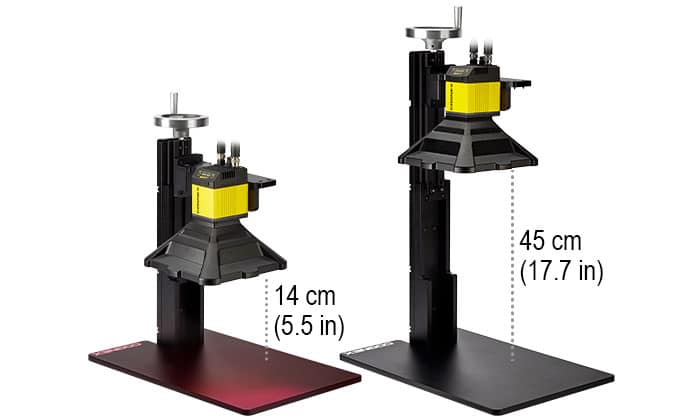

Expedite code verification on a variety of part sizes with the adjustable stand, compatible with all models. The optional extension arm allows parts up to 17.7” tall to fit under the verifier.

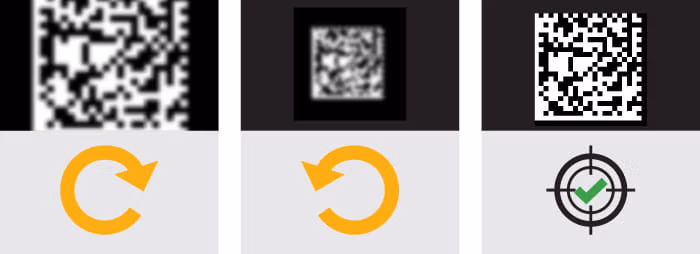

The Focus Feedback software tool guides users on precisely how to adjust the height of the stand to properly focus the verifier. Visual confirmation is given when the code is in focus, so users never have to second guess the accuracy of their verifier.

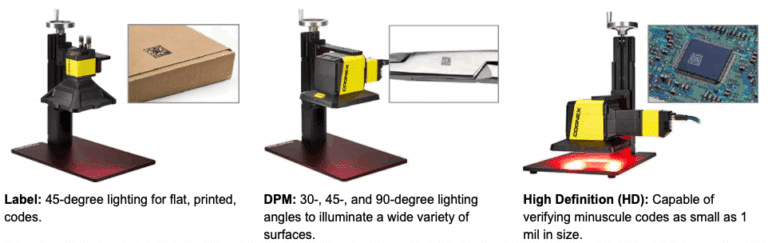

| DataMan 475VS-Label | DataMan 475VS-DPM | DataMan 475VS-HD | ||
|---|---|---|---|---|
| Lighting Types | 660 nm, 45°, 4-quadrant | 660 nm, 45°, 4-quadrant 660 nm, 30°, 1-quadrant, 2 quadrant, 4-quadrant 660 nm, 90° | 660 nm, 45°, 4-quadrant 660 nm, 30°, 1-quadrant, 2 quadrant, 4-quadrant 660 nm, 90° | |
| Symbologies | 1D: UPC/EAN, Code 128, ITF-14, I25, Code 39, Code 93, Codabar 2D: Data Matrix (ECC 200), QR Code, Micro QR Code, PDF417 | 1D: UPC/EAN, Code 128, Code 39 2D: Data Matrix (ECC 200), QR Code, Micro QR Code | 1D: UPC/EAN, Code 128, Code 39 2D: Data Matrix (ECC 200), QR Code, Micro QR Code | |
| Field of View | 80 x 60 mm | 35 x 29 mm | 11 x 9 mm | |
| Working Distance | 60 mm | 41 mm with side lighting attachment 71 mm without side lighting attachment | 41 mm with side lighting attachment 71 mm without side lighting attachment | |
| Depth of Field (WD Tolerance) | ±3 mm | 5 mil codes: ±1.5 mm 15 mil codes: ±2.5 mm | 1 mil codes: ±0.2 mm 4 mil codes: ±0.8 mm | |
| Minimum X-Dimension | 6 mil (0.15 mm) | 3.75 mil (0.095 mm) | 1 mil (0.025 mm) | |
| Image Sensor | Sony IMX264LLR 5 MP (2448 x 2048 pixels) 2/3 inch CMOS, global shutter 8.5 mm x 7.1 mm (H x V); 3.45 μm square pixels | |||
| Lens Type | 12 mm fixed focal length, f/4 fixed aperture, 2/3 inch sensor format, C-mount lens (users cannot alter lens) | 35 mm fixed focal length, f/4 fixed aperture, 2/3 inch sensor format, C-mount lens (users cannot alter lens) | 75 mm fixed focal length, f/4 fixed aperture, 2/3 inch sensor format, C-mount lens (users cannot alter lens) | |
| Communications | Ethernet | |||
| Power Consumption | 24 VDC±10%, 1.5 A max (36 W peak) | |||
| Weight | Verifier | 945 g | 1002.7 g | 2245 g |
| Stand | 6191.5g | |||
| Dimensions | Verifier | 185 x 185 x 175 mm | 286 x 145 x 193 mm | 360 x 145 x 193 mm |
| Stand | 485.73 x 424 x 280 mm (638.13 x 424x 280 mm with extension arm) | |||
| Environmental Protection | IP67 | IP65 | IP65 | |
| Approvals | CE, TUV, FCC, KC | |||
| Industry Standards Compliance | ISO/IEC 15415, ISO/IEC 15416, ISO/IEC TR 29158, ISO/IEC 15426-1, ISO/IEC 15426-2 | |||
| Application Standards | GS1, MIL-STD 130 UID, UDI, HIBCC, ISO 15434, Russian Crypto-Code, Custom Application Standards | |||
| Maximum Codes per Second | 1D and 2D: 4 seconds/code* | 2D: 4 seconds/code* | Application dependent | |
| Maximum Linear Line Speed | 3.6 ft/second (1.1 m/second) | 4.6 ft/second (1.4 m/second) | Application dependent | |
| Coplanarity Tolerance | ±3° of coplanar | ±2° of coplanar | ±0.1° of coplanar | |
