Cognex barcode verification technology ensures the readability and compliance of 1D and 2D barcodes with industry standards. While most companies still rely on manual, offline spot-checking, this process is often slow, inconsistent, and labor-intensive.
The DataMan 475V Series revolutionizes verification with high-speed, inline grading—capable of verifying up to 20 codes per second directly on your production line. This enables 100% barcode verification, reducing product waste, preventing costly chargebacks, and improving overall quality control.
Key Benefits:
Real-time feedback and intuitive visual diagnostics help operators quickly correct print and process issues
Automatically generated, detailed reports ensure traceability, compliance, and statistical process control
Streamlined integration with existing production lines for fast, accurate, and scalable verification
Achieve higher confidence in your labeling process with the DataMan 475V—your solution for fast, reliable, and standards-compliant barcode verification.
The DataMan 475V-label uses a four-quadrant, 45-degree lighting attachment for grading 1D and 2D label-based barcodes. This model is compliant with the International Organization for Standardization (ISO), allowing proper grading of 1D and 2D codes, according to the ISO 15416 and 15415standards. The included calibration card and robust grading algorithms ensure that the DataMan 475V conforms to ISO and application standards while providing accurate and repeatable results.

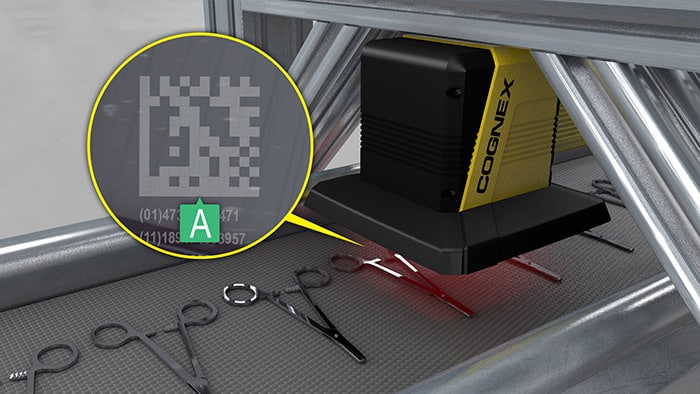

DataMan 475V-DPM illuminates codes on textured, curved, and highly reflective surfaces using a multi-quadrant lighting attachment with 30S, 30Q, 30T, 45, and 90-degree lighting options. This model is ISO compliant and ready to grade codes in accordance with the ISO/IEC TR 29158 (AIM DPM) standard.

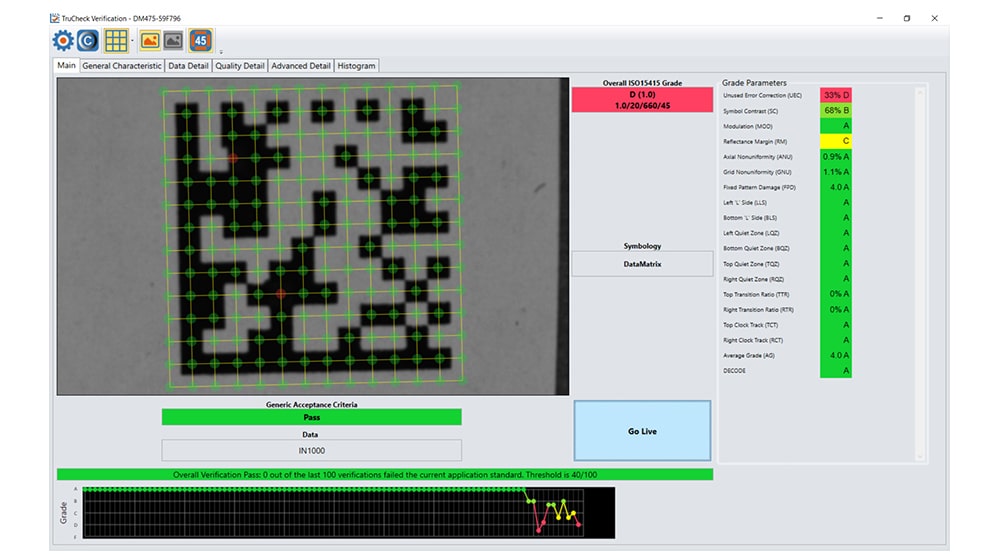

Barcode verification software provides visual diagnostic information to identify one-off or trending code quality issues. It assigns an overall grade to a code based on measurements of ISO-defined quality parameters and generates an official quality report. These parameters measure several factors that affect a barcode reader’s ability to identify and decipher a code, maximizing read rate performance throughout the supply chain.
| DataMan 475V-label | DataMan 475V-DPM | |
|---|---|---|
| Lighting Types | 660 nm, 45°, 4-quadrant | 660 nm, 45°, 4-quadrant 660 nm, 30°, 1-quadrant, 2 quadrant, 4-quadrant 660 nm, 90° |
| Symbologies | 1D: UPC/EAN, Code 128, ITF-14, I25, Code 39, Code 93, Codabar 2D: Data Matrix (ECC 200), QR Code, Micro QR Code, PDF417 | 2D: Data Matrix (ECC 200), QR Code, Micro QR Code, UPC/EAN, Code 128, Code 39 |
| Field of View | 80 x 60 mm | 35 x 29 mm |
| Working Distance | 60 mm | 41 mm |
| Depth of Field (WD Tolerance) | +/- 3 mm | 5 mil symbols: +/- 1.5 mm 15 mil symbols: +/- 2.5 mm |
| Minimum X-Dimension | 6 mil (0.15 mm) | 3.75 mil (0.095 mm) |
| Image Sensor | Sony IMX264LLR 5 MP (2448 x 2048 pixels) 2/3 inch CMOS, global shutter 8.5 mm x 7.1 mm (H x V); 3.45 μm square pixels | |
| Lens Type | 12 mm fixed focal length, f/4 fixed aperture, 2/3 inch sensor format, C-mount lens (users cannot alter lens) | 35 mm fixed focal length, f/4 fixed aperture, 2/3 inch sensor format, C-mount lens (users cannot alter lens) |
| Communications | Ethernet | |
| Power Consumption | 24 VDC±10%, 1.5 A max (36 W peak) | |
| Weight | 945 g | 1002.7 g |
| Dimensions | 185 x 185 x 175 mm | 286 x 144 x 190 mm |
| Environmental Protection | IP65 | IP65 with cables and appropriate lens cover attached |
| Approvals | CE, TUV, FCC, KC | |
| Industry Standards Compliance | ISO/IEC 15415, ISO/IEC 15416, ISO/IEC TR 29158, ISO/IEC 15426-1, ISO/IEC 15426-2 | |
| Application Standards | GS1, MIL-STD 130 UID, UDI, HIBCC, ISO 15434, Russian Crypto-Code, Custom Application Standards | |
| Maximum Codes per Second | 1D: 20 codes/second* 2D: 10 codes/second* | 2D: 10 codes/second* |
| Maximum Linear Line Speed | 3.6 ft/second (1.1 m/second) | 4.6 ft/second (1.4 m/second) |
| Coplanarity Tolerance | +/- 3° of coplanar | +/- 2° of coplanar |
