The DataMan 470 Series fixed-mount barcode readers are built for the most complex, high-throughput manufacturing and logistics applications. Designed with powerful, industry-leading technology, the DataMan 470 combines multi-core processing, advanced imaging capabilities, and a high-resolution sensor to deliver exceptional speed, accuracy, and coverage.
With cutting-edge decoding algorithms and an intuitive setup process, the DataMan 470 ensures maximum performance with minimal effort, making it the ideal solution for demanding industrial environments.
Key Features:
Multi-core processing for fast, parallel decoding
High-resolution sensor for wide-area coverage
Advanced imaging and lighting for difficult codes
Simplified setup and configuration
Reliable performance in high-speed, high-volume workflows
The DataMan 470 barcode reader has seven powerful processing cores, enabling it to run multiple algorithms and processes in parallel at astonishing speeds. It reads challenging 1D and 2D codes in varied locations, as well as multiple mixed symbologies simultaneously while maintaining the highest decode rates.

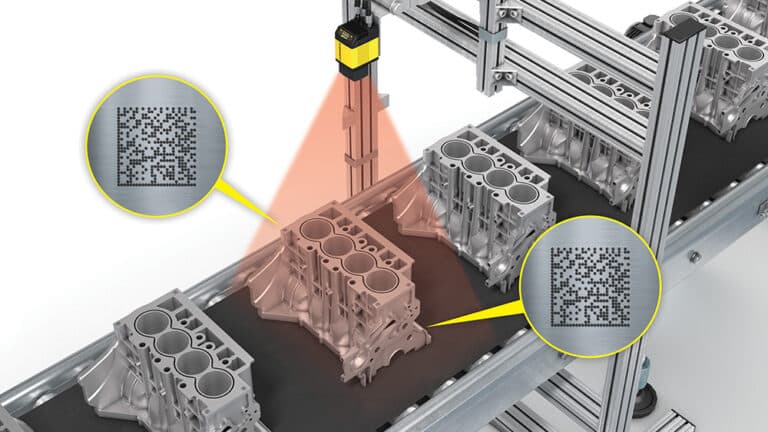

DataMan 470’s innovative imaging technology delivers unprecedented coverage and speed allowing greater process variation and lower facility design costs. It enhances the image quality of 1D and 2D codes and reads barcodes not even visible to conventional readers.
DataMan 470 series is optimized with patented algorithms to ensure continuously high read rates of 1D and 2D symbologies, regardless of size, quality, printing method, or surface.

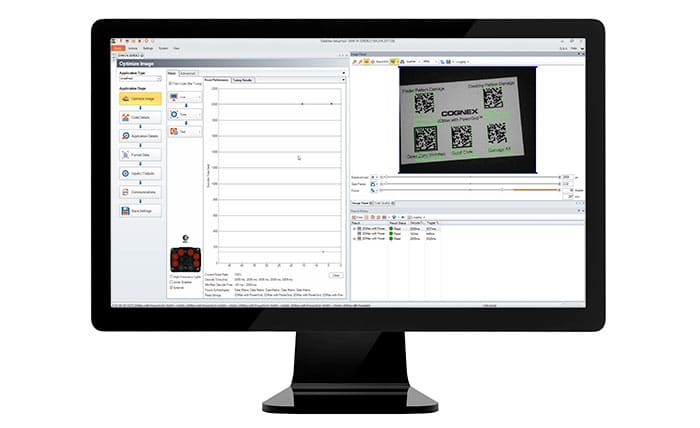

The newly optimized DataMan Setup Tool simplifies reader setup by providing a step-by-step installation flow for easy and efficient setup. DataMan 470 series includes Gigabit Ethernet for fast, full-resolution image transfer to the Setup Tool to help diagnose the cause of unread codes. Cognex Edge Intelligence provides barcode quality metrics to help optimize production processes.
| Â | DataMan 474 | DataMan 475 |
|---|---|---|
| Algorithms and Technologies | 1DMax, 2DMax, Hotbars, PowerGrid | |
| Image Sensor | 1/1.8″ CMOS | 2/3″ CMOS |
| Image Sensor Properties | Diagonal 8.9 mm; 3.45 µm square pixels | Diagonal 11.1 mm; 3.45 µm square pixels |
| Image Sensor Resolution | 2048 x 1536 | 2448 x 2048 |
| Electronic Shutter Speed | Min. exposure: 15 µs Max. exposure: 1000 µs with internal illumination/10000 µs with external illumination | |
| Max Acquisition | Up to 80 Hz | Up to 55 Hz |
| Lens Options | Liquid lens 8 mm, 10 mm, 16 mm, 24 mm, 35 mm; C-mount 12 mm, 16 mm, 25 mm, 35 mm, 40 mm | |
| Trigger and Tune Buttons | Yes; Quick Setup Intelligent Tuning | |
| Aimer | Optional | |
| Discrete Inputs | 2 fixed + (*) opto-isolated | |
| Discrete Outputs | 2 fixed + (*) opto-isolated | |
| *Other I/O Points | 2 user-configurable | |
| Status Outputs | Beeper, 5 multifunctional LEDs, 10 LED bar array, 360 degree indicator | |
| Lighting | Integrated LEDs, red, blue, or IR; diffuse, polarized, high powered integrated light (HPIL), high powered integrated torch (HPIT), various controllable external light options | Integrated LEDs, red, blue or IR; diffuse, polarized, high powered integrated torch (HPIT), various controllable external light options |
| Communications | Ethernet and Serial | |
| Protocols | RS-232, TCP/IP, PROFINET, EtherNet/IP(TM), SLMP, Modbus TCP, NTP, SFTP, FTP, MRS Java Scripting enabled for custom protocols | |
| Power | 24 VDC ±10% | |
| Power Consumption | 24 VDC ±10%, 1.5 A maximum (HPIL/HPIT1) 24 VDC, 250 mA maximum (reader) Supplied by LPS or NEC class 2 only | |
| Weight | 373 g | |
| Dimensions | 126.8 mm (L) x 60.5 mm (W) x 77.1 mm (H) | |
| Operating Temperature | 0–57 °C (32–134.6 °F)2 | |
| Storage Temperature | -20–80 °C (-4–176 °F) | |
| Operating and Storage Humidity | < 95% non-condensing | |
| Protection | IP67 with cables and appropriate lens cover attached | |
| RoHS Certified | Yes | |
| Approvals (CE, UL, FCC) | Yes | |
| Standards Compliance | IEC 61340-5-1:2016 | |
