The DataMan 390 is an AI-powered, high-resolution barcode reader engineered to excel in complex, high-demand applications. With a wide field of view, powerful lighting options, and the ability to decode multiple symbologies, it ensures reliable performance—even in the most challenging environments.
Key Features:
AI-Enabled Tuning: Automatically optimizes settings for maximum read accuracy.
Advanced Decoding Algorithms: Deliver industry-leading read rates on difficult or damaged codes.
Guided Setup & 24/7 Support: Simplifies deployment and keeps your operations running smoothly.
Wide FoV & High Resolution: Covers more area with fewer devices, reducing system complexity.
Whether you’re operating in manufacturing, logistics, or industrial automation, the DataMan 390 enhances traceability, increases throughput, and simplifies your barcode reading operations.

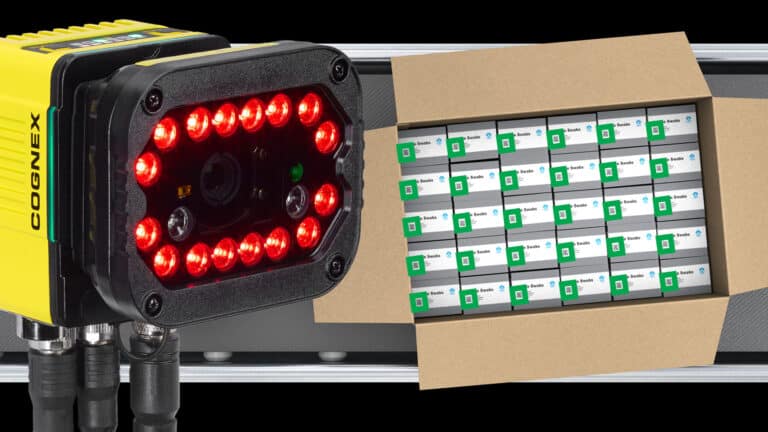

Boost your automated scanning operations with the AI-enhanced decoding power of the DataMan 390. Ideal for multi-code and multi-symbology applications, it ensures reliable part and package tracking across the factory floor. With dual Ethernet ports, the DataMan 390 enables rapid image and data offloading—giving you instant access to scan results.
1D and 2D Code Reading: Accurately reads all code types, including damaged or low-quality barcodes, ensuring consistent results.

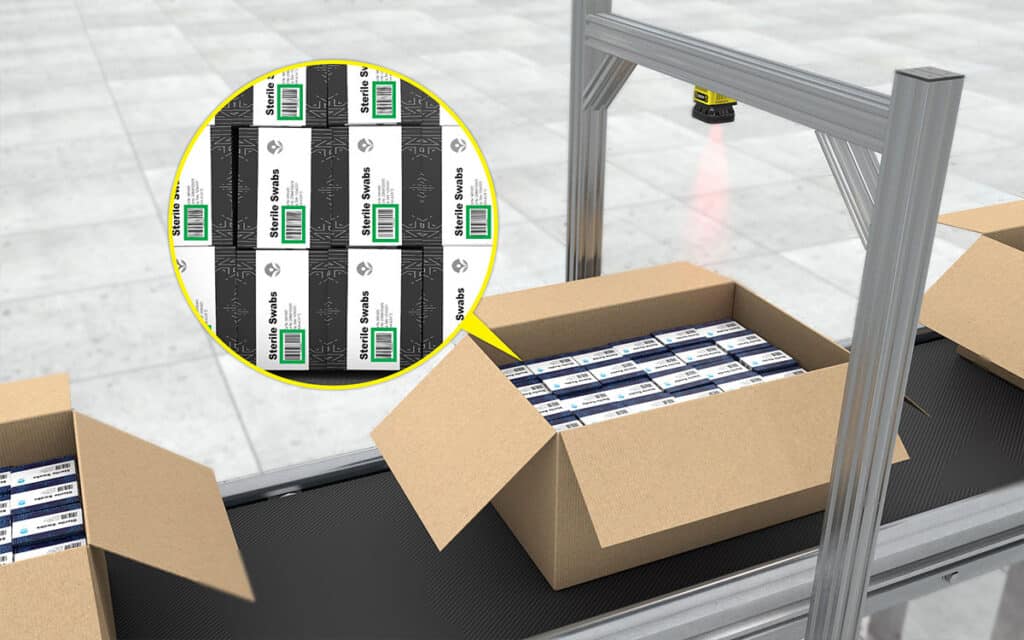

Multi-Code Reading: Scan multiple barcodes in a single frame to support high-speed, track-and-trace operations.
Scanning on Large Items: Effortlessly read codes on large components, such as automotive or aerospace parts, using multi-reader synchronization and the reader’s wide field of view.
Printed and Direct Part Mark (DPM) Reading: Decode barcodes on virtually any surface—from packaging labels to direct part marks—for full facility-wide traceability.
AI-guided positioning and tuning
Real-time positioning feedback ensures the code is at the optimal distance from the reader. Then, easily find the right settings with automated tuning.
AI-enhanced decoding
Increase image quality and decode damaged or low-quality codes for more reliable code reading.
AI-powered analysis
Read all code types, including occluded, distorted, or challenging codes with industry-proven decoding algorithms.

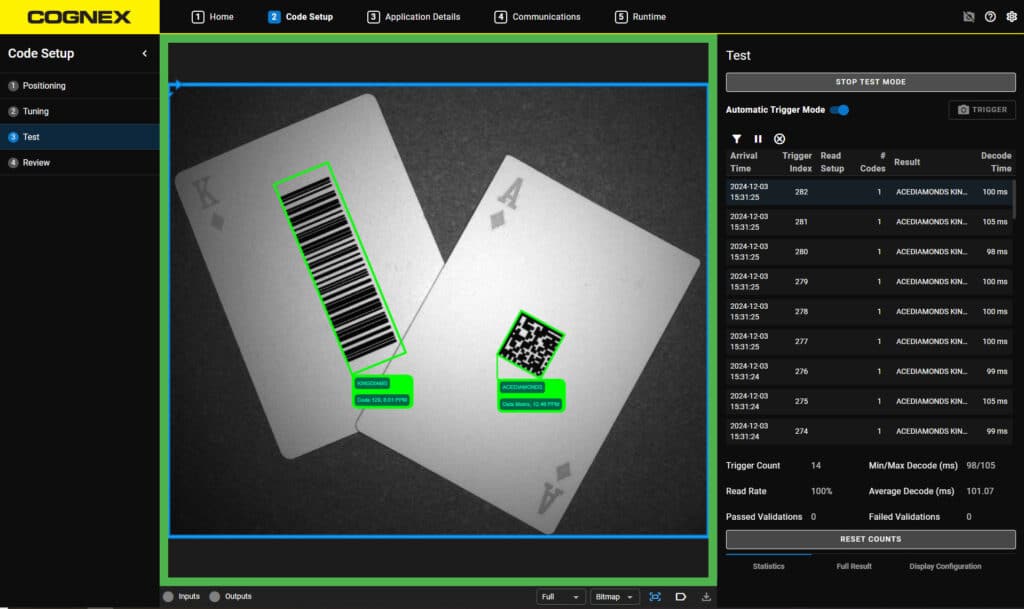

The intuitive web-based UI guides you step-by-step through setup, and AI positioning and tuning save time, reduce errors, and ensure accurate results. If you need additional help, customized training and startup resources are immediately available when you first connect.
| DataMan 390 Series | ||
|---|---|---|
| DataMan 394X | DataMan 395X | |
| Image Sensor | 1/1.8” CMOS, global shutter | 2/3” CMOS, global shutter |
| Image Sensor Properties | 8.99 mm diagonal, 3.45 x 3.45 µm square pixels | 11.1 mm diagonal, 3.45 x 3.45 µm square pixels |
| Image Resolution | 2048 x 1536 | 2448 x 2048 |
| Lens Options | C-mount and Cognex High Speed Liquid Lens | |
| Electronic Shutter Speed | 25.1 µs to 200,000 µs | 19.1 µs to 200,000 µs |
| Acquisition at Full Resolution | Up to 45 Hz | Up to 33 Hz |

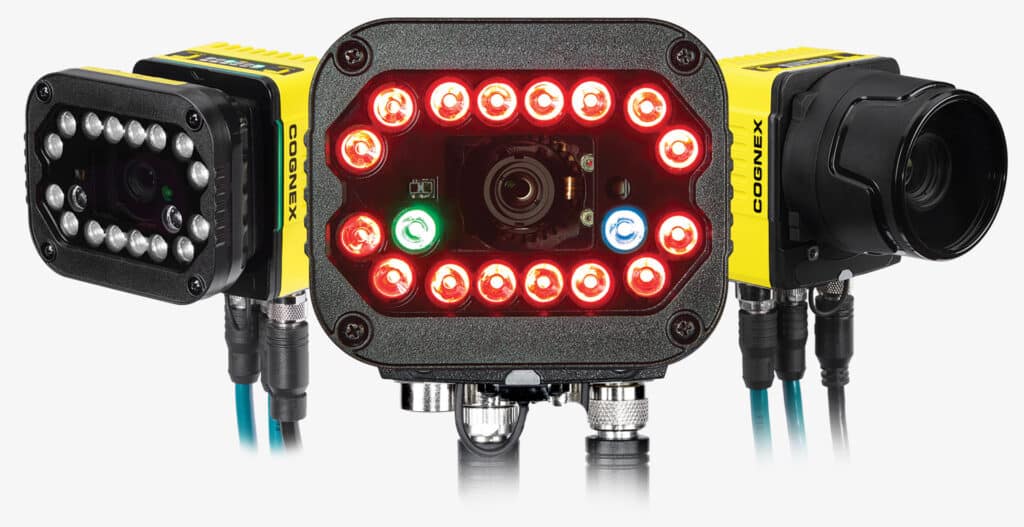

| Lighting | High Powered Integrated Torch (HPIT): Red or White Lighting with a Distance Sensor, Laser Aimer, and Configurable Indicator Lights Front Cover Options: Polarized and Clear Other: External Light Options | |
| Status Outputs | Pass/Fail LED and Indicator Ring, Network LED, and Error LED | |
| Discrete Inputs | 1 opto-isolated, acquisition trigger input. Up to 3 general-purpose inputs when connected to the Breakout cable. | |
| Discrete Outputs | Up to 4 high-speed outputs when connected to the Breakout cable. | |
| Power | 24 V DC at 1.0 A maximum to external light | |
| Power Consumption | 24 V DC +/- 10%, 2.0 A maximum | |
| Dimensions | DataMan 390 with no accessories attached: 69 x 89.7 x 45.9 mm (2.72 x 3.53 x 1.81 in) With 45 mm C-mount cover attached: 69 x 89.7 x 99.7 mm (2.72 x 3.53 x 3.93 in) With HPIT: 90.5 x 89.7 x 89.1 mm (3.56 x 3.53 x 3.51 in) | |
| Weight | DataMan 390 with no accessories attached: 569 g (20.1 oz) With 45 mm Plastic C-mount Cover: 624 g (22 oz) – no lens included With High Powered Integrated Torch (HPIT): 762 g (26.9 oz) – no lens included | |
| Operating Temperature | 0˚ C to 40˚ C (32˚ F to 122˚ F) | |
| Storage Temperature | -20˚ C to 80˚ C (-4˚ F to 176˚ F) | |
| Operating and Storage Humidity | < 95% non-condensing | |
| Shock | IEC 60068-2-27: 18 shocks (3 shocks in each polarity in each (X,Y, Z) axis) 80 Gs (800 m/s2 at 11 ms, half-sinusoidal) with cables or cable plugs and a 150 gram or lighter lens attached. | |
| Vibration | IEC 60068-2-6: vibration test in each of the three main axis for 2 hours at 10 Gs (10 to 500 Hz at 100 m/s2 / 15 mm) with cables or cable plugs and a 150 gram or lighter lens attached. | |
| Environmental | Altitude: 2000 m, indoor use only, pollution degree II | |
| Communications | 2 Ethernet Ports | |
| Ethernet | 10/100/1000 BaseT with auto MDIX. IEEE 802.3 | |
| RS-232 | RxD, TxD according to Tia/EIA-232-F | |
| Protocols | TCP/IP Protocol Supports DHCP, static, and link-local IP address configuration. One port supports TSN networks | |
| Protection | IP67 | |
| RoHS Certified | Yes | |
| Approvals | CE, FCC, TÜV SÜD NRTL | |
