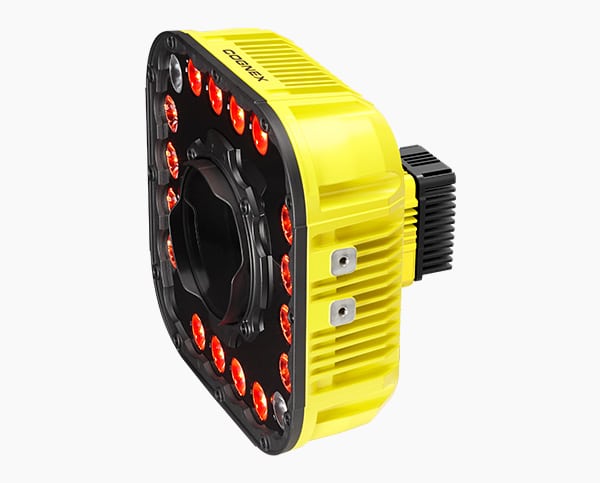

The DataMan 380 is a high-performance, image-based barcode reader designed to streamline operations by capturing and tracking product and package data in high-speed environments. With built-in intelligence and a wide field of view, it simplifies complex setups and boosts operational efficiency.
Key Benefits of the DataMan 380:
Greater Throughput: Advanced, AI-assisted decoding delivers fast, accurate multi-symbology reading—keeping your lines moving.
Reduced Rework: A wide field of view and enhanced image formation ensure reliable reads, even in challenging conditions.
Simplified Deployment: The expansive FoV allows one DataMan 380 to cover what previously required multiple readers—reducing system complexity and setup time.

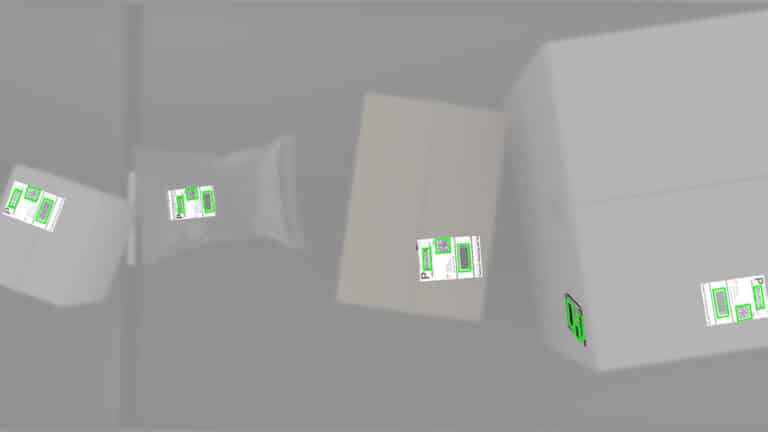

Run your logistics lines at the highest speeds while maintaining exceptional read rates and close package proximity with 1D/2D QuickSortâ„¢. This embedded technology delivers exceptional read rates during high-speed operations by leveraging AI to quickly isolate barcodes using a single processor.

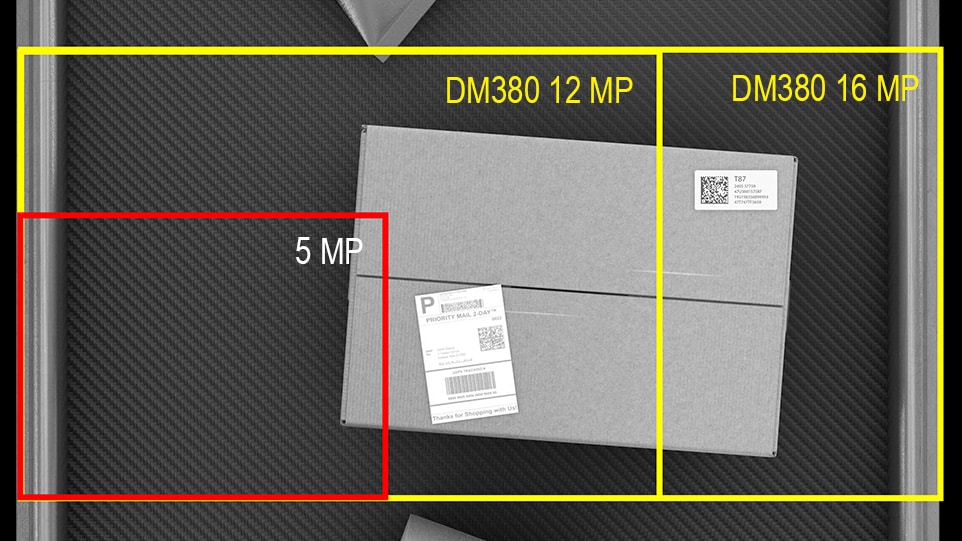

Improve throughput with an extensive FoV that covers larger surface areas across manufacturing and logistics lines. The combination of a high-resolution imager and advanced decoding technologies enable the reader to cover greater areas and scan damaged and obscured barcodes, increasing throughput and read rates.
Enhance scanning coverage and minimize exposure times for greater throughput. Red and white lighting options optimize illumination in various applications.

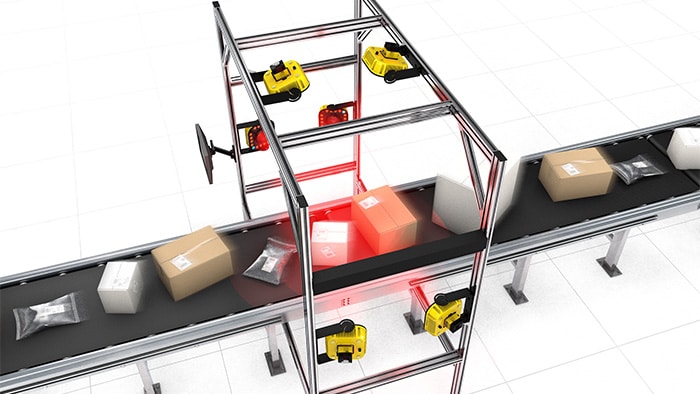

Cognex Modular Vision Tunnels (MVT) elevate the speed and efficiency of sortation, inbound receiving, and outbound logistics operations. These 1-6 sided logistics solutions offer multi-sided barcode reading and handle a range of package volumes and box gaps, without sacrificing accuracy.
| DATAMAN 380 SERIES SPECIFICATIONS | |
|---|---|
| Lens Type | C-Mount or Cognex High Speed Liquid Lens Autofocus. |
| Trigger | 1 opto-isolated, acquisition trigger input. |
| Discreet Inputs | 1 opto-isolated, acquisition trigger input. Up to 3 general-purpose inputs when connected to the Breakout cable. VIL: ≤ ± 6 V VIH: ≥ ± 12 V I TYP: 4.2 mA @ 24 V |
| Discrete Outputs | Up to 4 outputs when connected to the Breakout cable. I MAX: 50 mA VOL: ≤ ± 3 V @ 50 mA |
| Status LEDs | Pass/Fail LED and Indicator Ring, Network LED, and Error LED. |
| Codes | 1D barcodes: Codabar, Code 39, Code 128, Code 93, Code 25, Interleaved 2 of 5, UPC/EAN/JAN 2D barcodes: Data Matrix (ECC 0, 50, 80, 100, 140, and 200), QR Code, PDF 417, MaxiCode |
| Network Communication | 2 Ethernet ports, 10/100/1000 BaseT with auto MDIX. IEEE 802.3 TCP/IP Protocol. Supports DHCP, static, and link-local IP address configuration. One port supports TSN networks. RS-232: RxD, TxD according to TIA/EIA-232-F |
| Power Consumption | 24 V DC +/- 10% LPS or NEC class 2 Power consumption without USB device attached: Average ≤ 15 W without illumination Average ≤ 40 W with illumination Peak ≤ 2 A |
| Power Output | 24 V DC at 1.0 A maximum to external light. |
| Material | Die-cast and extruded aluminum housing. |
| Finish | Painted. |
| Mounting | Four M3 threaded mounting holes. Pattern: 38.5 × 58.5 mm (1.52 × 2.60 in) |
| Weight | DataMan 380 with no accessories attached: 775 g (27.3 oz). |
| Case Temperature | 0° C to 40° C (32° F to 122° F) |
| Storage Temperature | -20° C to 80° C (-4° F to 176° F) |
| Humidity | < 95% non-condensing |
